750 mm / 29.5"
1700 mm / 67"
2200 mm / 86"
3200 mm / 126"
4200 mm / 165"
5200 mm / 205"
6200 mm / 244"
7200 mm / 283"
Ø 155 mm / Ø 6" (standard)
Ø 230 mm / Ø 9" (optional)
Ø 305 mm / Ø 12" (optional)
1500 mm / 59"
5 - 615 rpm / 18 Steps
H: 710 - 188 rpm
M: 187 - 40 rpm
L: 39 - 7 rpm
Standard electrical component
CE Certificated machine
Canada CSA standard conformity machine
with A1-11 Spindle Nose
with A2-15 Spindle Nose
with A2-20 Spindle Nose
Available on request
Thr. Hole 160 mm.
Thr. Hole 205 mm.
Thr. Hole 260 mm.
For A2-11 Spindle Nose
For A2-11 / A2-15 Spindle Nose
For A2-11 / A2-15 Spindle Nose
For A2-11 / A2-15 Spindle Nose
4-jaw independent chuck
For different size Spindle Bore
CE Standard full length rear splash guard
CE Standard Chuck Guard
CE Standard Leadscrew Guard
Chip & Coolant Shield
Standard for all series
Standard for "i" series
2-axis DRO system (Fagor)
2-axis DRO system (Taiwan)
To support the long workpiece and prevent buckling (fixed)
To support the long workpiece and prevent buckling (moveable)
Increase confidence for workpiece requires correct shoulder length
5 Adjustable reference screw for conveniently setting stop position
Main drive motor
Upgrade to bigger HP motor
Reliable, Longer use life, Responsive and Stable
Faster travel speed for Z-axis
Ruggedly constructed for ultra-high stability when heavy cutting
Prevent simultaneously power feeding & Thread cutting
Standard Coolant equipment
Segment of bed, can be removed for increasing swing capacity
Slideways of carriage & saddle are hardened and best wear resistance
Easier & faster fixing cutting tool
Hardened, Precisely-ground and graduated in inch & metric scales
Especially ideal for holding long workpiece
At the back side of the bed, suitable for taper-cutting
Standard Dead Center
Halogen Work Light
18 steps

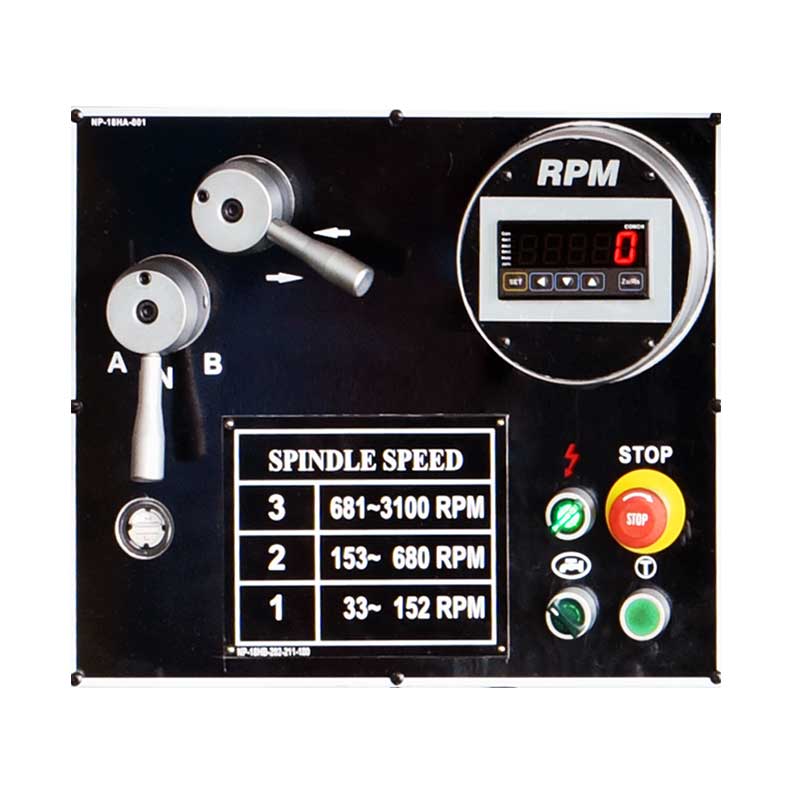

Rotary Dial Lever
Inverter drive variable speed output
3 Range selection (H/M/L)
Automatic speed change by inverter control
Rotary dial chart reference
Spindle speed displayed
on rpm meter
Foot brake with brake pedal
Electromagnetic brake for spindle motor
-
CSS-like Function (Constant Surface
Speed)
Constant spindle speed combines with the use of
cross slide lever for feeding, providing cutting accuracy and speed for side
facing on a round plate
-
Step Turning Perform
By using automatic speed change, combined with
automatic cross feed function will increase efficiency greatly.
Standarad Accessories

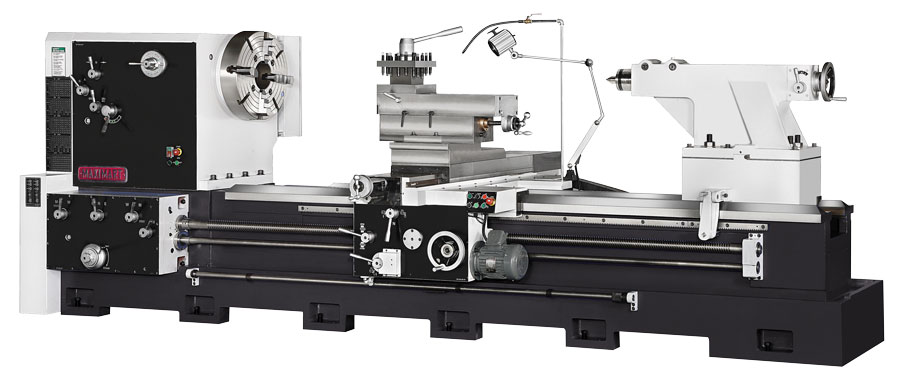

Available options on Maximart Precision Lathe
*Spindle speed difference is subject to model selection
