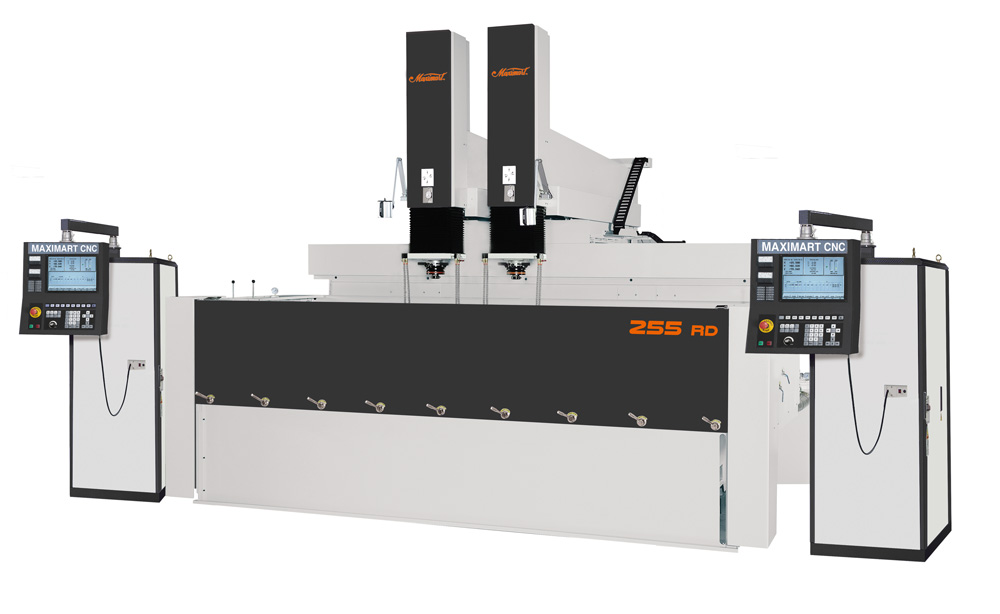

Home  /  Machines  / MDS-series / MDS-R

ACCESSORIES

CONTROL

specification

DESIGN

CONTACT

CATALOG

ACCESSORIES

Electric & Certification

Standard Electric component

Standard electrical component

STANDARD

CE Regulation machine

CE Conformity machine

OPTIONAL

Power Supply Unit (Capacity) Upgrade

Power supply unit upgrade to bigger Amps

OPTIONAL

Independent Power Supply Unit & Oil Tank

Independent Power Supply Unit & Oil Tank

STANDARD

3 in 1 Power Supply Unit & Oil Tank

3 in 1 Power Supply Unit & Oil Tank (for MDS-400 series only)

OPTIONAL

Conver

3 in 1 Power Supply Unit & Oil Tank (for MDS-400 series only)

OPTIONAL

Standard Accessories

Paper Filter

Paper filter

STANDARD

Clamping Kits

Clamping Kits

STANDARD

Remote Controller

Remote Controller

STANDARD

Working Lamp

Working Lamp

STANDARD

Electrode Holder

Electrode Holder

STANDARD

Drill Chuck

Drill Chuck

STANDARD

Flushing Nozzle

Flushing Nozzle

STANDARD

Tool Box

Tool Box

STANDARD

Optional Accessories

Automatic Fire Extinguisher

Automatic Fire Extinguisher

OPTIONAL

Rotating Spindle

Rotating Spindle

OPTIONAL

Dielectric Cooler

Dielectric Cooler

OPTIONAL

Permanent Magnetic Table

Permanent Magnetic Table

OPTIONAL

C-axis

C-axis head of 10 kg load, for 3D CNC model only

OPTIONAL

A.T.C Automatic Tools Change

with electrode protect sensor, for 3D CNC model only

OPTIONAL

CONTROL TYPE

ZNC

PNC

CNC

3D-CNC

   Functions

1-Axis Digital Control
Max. 12 steps for fine eroding in both up & down direction

3-Axis Digital Control
Multi-cave moving sparking
Side Sparking
Automatic probing

3-Axis Digital Control
2.5D Orbit function
Multi-cave moving sparking
Side Sparking
Automatic probing

ATC & C-axis Available
3 axes 6 directions machining
Multi-cave moving sparking
Side Sparking
Automatic probing

   Sparking Axis

Z

X.Y.Z

X.Y.Z

X.Y.Z

   Eroding Direction

Z +/-

X​ +/-, Y​ +/-, Z +/-

X​ +/-, Y​ +/-, Z +/-

X,Y,Z,XY,XZ,YZ

   Performance

ZNC

Programmable depth control sparking, available in both upward & downward

PNC

ZNC function + Side eroding + Multi-cave position control sparking + Auto Probing

CNC

PNC function + ORBIT Cut function

3D-CNC

CNC function + 3 axes 6 directions machining + C axis function (Opt.) + Maximum 999 steps program

Technical Table

Explore the Specification and Accessories
