MAXIMART 5-Axis VMC

Maximart line of 5-Axis machine are the most accurate machines available on the market.
All Maximart machines listed here are designed to maximize thermal stability and eliminate cumulative errors commonly found in 5-axis machine applications.
Maximart 5-Axis machine have 2 distinctive features : Dynamic Machining Accuracy, Versatile Precision. that's why so many customer choose our product.

5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process.

The term “5-axis” refers to the number of directions in which the cutting tool can move.

On a 5-axis machining center, the cutting tool moves across the X, Y and Z linear axes as well as rotates on the A and B axes to approach the workpiece from any direction.

In other words, you can process five sides of a part in a single setup.
D - Series
D-600

All Maximart machines listed here are designed to maximize thermal stability and eliminate cumulative errors commonly found in 5-axis machine applications....

View Details
Table size Ø 600mm
X / Y / Z axis Travel 600 / 835 / 450 mm
A / C axis Travel A-axis: ± 120°, C-axis: 360°
Spindle Taper BBT40 / HSKA63
Spindle speed 20,000 rpm

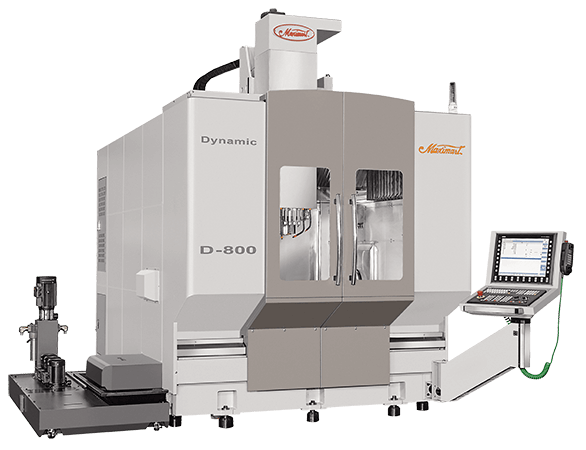

D-800

All Maximart machines listed here are designed to maximize thermal stability and eliminate cumulative errors commonly found in 5-axis machine applications....

View Details
Table size Ø 800mm
X / Y / Z axis Travel 800 / 1010 / 650 mm
A / C axis Travel A-axis: ± 120°, C-axis: 360°
Spindle Taper BBT40 / HSKA63
Spindle speed 20,000 rpm
C - Series
C30 - 5U/5A

All Maximart machines listed here are designed to maximize thermal stability and eliminate cumulative errors commonly found in 5-axis machine applications....

View Details
Table size Ø 320mm
X / Y / Z axis Travel 610 / 610 / 510 mm
A / C axis Travel A-axis: +30 / -120°, C-axis: 360°
Spindle Taper BBT#40 / DIN#40 / CAT#40
Spindle speed 12,000 rpm
C50 - 5U/5A

All Maximart machines listed here are designed to maximize thermal stability and eliminate cumulative errors commonly found in 5-axis machine applications....

View Details
Table size Ø 500mm
X / Y / Z axis Travel 810 / 700 / 610 mm
A / C axis Travel A-axis: +30 / -120°, C-axis: 360°
Spindle Taper BBT#40 / DIN#40 / CAT#40
Spindle speed 12,000 rpm
