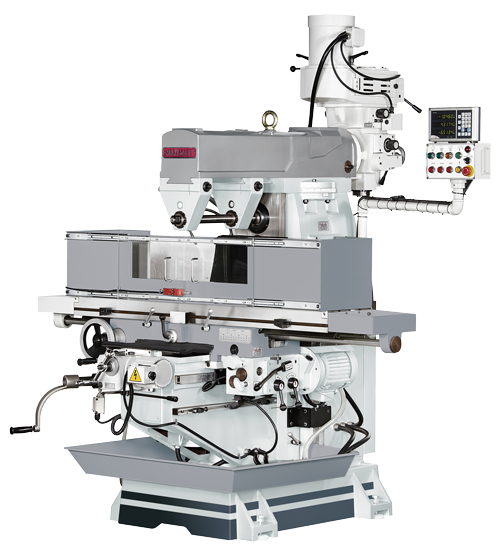

Universal Mill
Huron Models
SPEC
Horizontal and Vertical milling tasks in one station.
A versatile solution for every workshop.
Huron
Head
360 degrees swivel angle
1850
mm
max. working table
ISO
40/50
spindle taper
X/Y/Z
axes Inverter-drive
feed speed
U and M

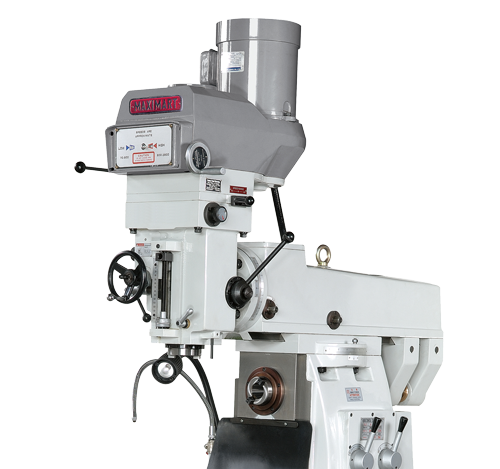

Vertical spindle (Huron head)
&

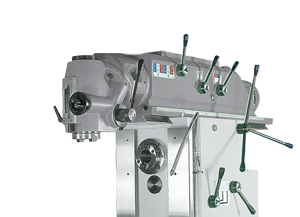

Horizontal spindle
driven by
the same gear box and motor
Model: 5U / 8U
Vertical spindle (Huron head)
&
Horizontal spindle
driven by
independent gear box and motor
Model: 8QM / 8M / 8UM
U and M
Vertical spindle (Huron head)
&
Horizontal spindle
driven by
the same gear box and motor
Model: 5U / 8U
Vertical spindle (Huron head)
&
Horizontal spindle
driven by
independent gear box and motor
Model: 8QM / 8M / 8UM
Universal Mill with quill travel
Only 8QM
Quill Travel 150 mm
Only 8M
Quill Travel 100 mm
Explore milling application.
Horizontal Plane
Vertical Surface
Spiral Surface
Multi
Angle Cutting
Angular
Machining
Keyway
Dovetail
Groove
Gear Cut
MEEHANITE®
Quality Machine Frame
Rigid and Strong Cast iron
- Rigid and strong MEEHANITE quality castings to ensure stable machining performance of longtime use.
- Ruggedly constructed throughout for maximum stability without deformation
Oversized square
line slideways
on X/Y/Z axes

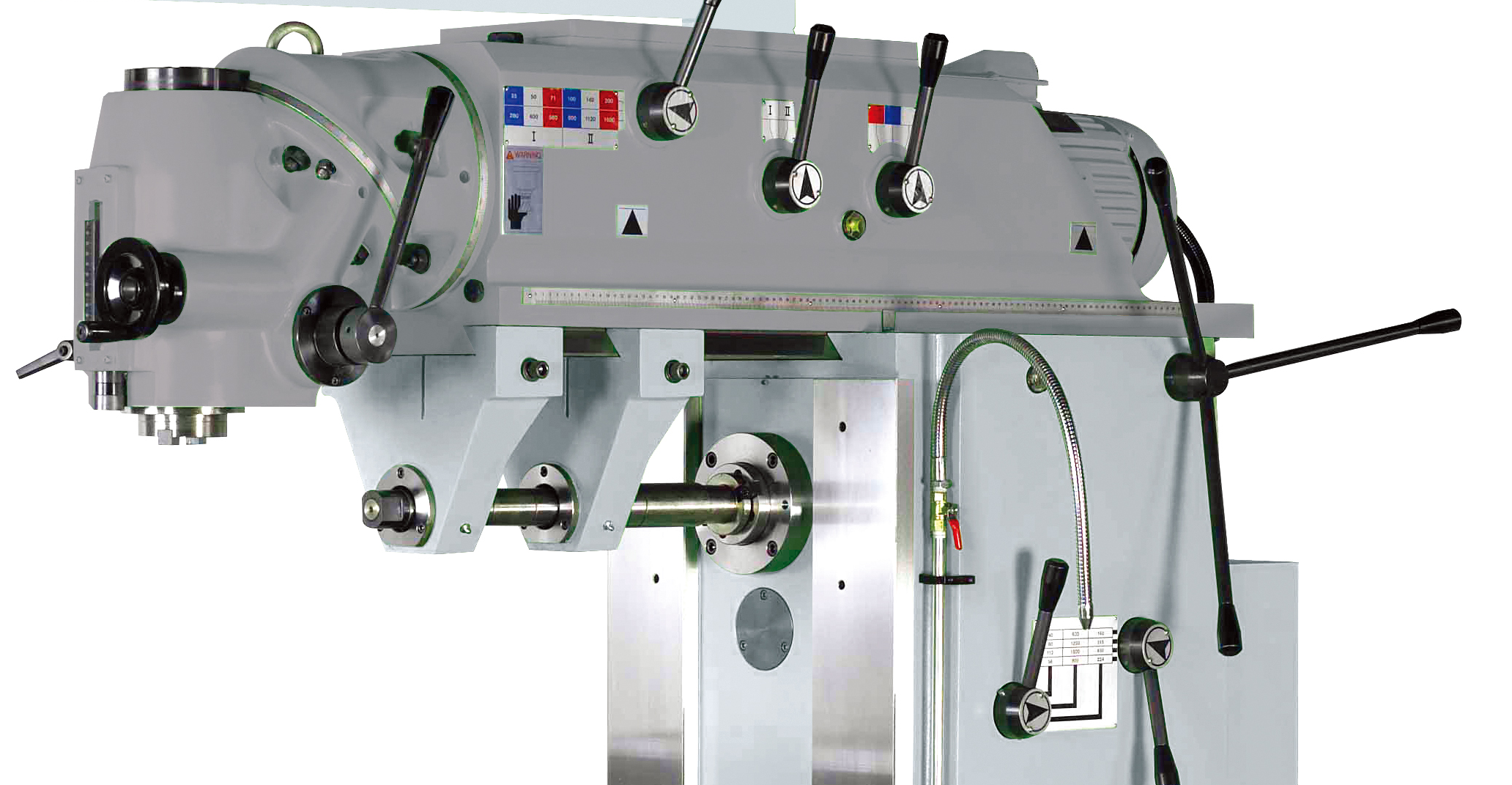

Precise and Versatile Spindle
All gears and shafts are hardened and precision ground for low-noising running.

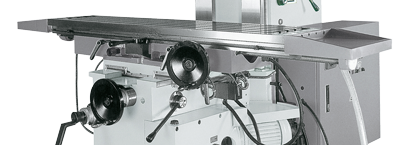

Hardened & Precisely Ground Work Table Surface
Extra large work table size in its class, with three T-slots ground and hardened. (Except 5U)

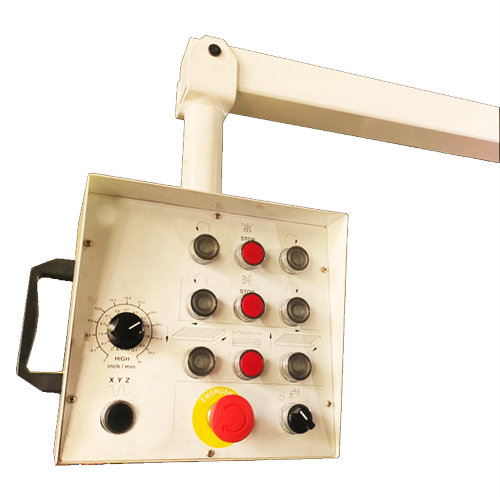

Overarm Swiveling Control
Panel Box
Mounted with heavy-duty overhead square arm, all the milling jobs are achieved via the integrated control panel for optimal ergonomic operation.

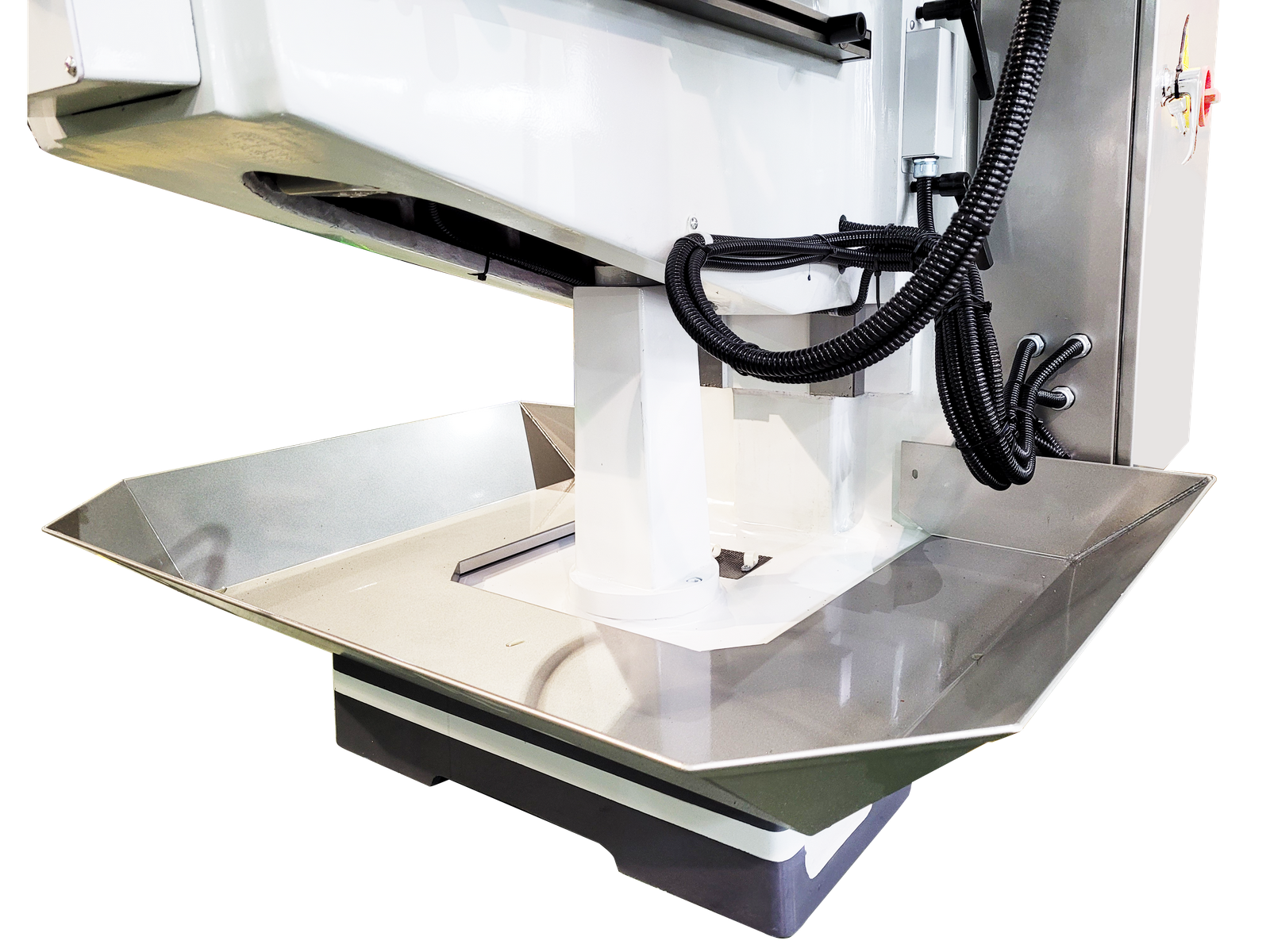

CNC type Coolant/Chip Tray (opt.)
Heavy-duty full chip pan to cover and collect coolant/metal chip, ideally and effectively maintain a clean working environment.
Electrics safety.
Manufactured for every market.
MAXIMART provide universal knee type mills under CE / CSA Certification
Spindle Safety Guard
CE / CSA approved
Electrical
Cabinet with
Power Supply Alarm
CE / CSA approved
Integrated
Water-proof
Control Panel Box
CE / CSA approved
Clutch-type Handwheel
with Foldable Handle
CE / CSA approved
CNC type
Chip Collecting
Tray
CE / CSA approved
Choose your Models
Export the models for your factory, and enjoy the wonderful experience of Maximart's machine
SpECIFICATION
