Surface Grinder

High Precision and Reliable partner

MAXIMART Grinder, each and every component of models (including machine base, saddle, work table, wheel head) is made of high rigidity cast iron,
giving a stable and smooth support for grinding performance, and greatly maintaining longer service duration.

MSG-M

MSG-H

MSG-NC

MIG

Home  /  Machines  / Grinder machine / MG-series

"Amazing quality with reliable"

Stable, Easy operation, High accuracy milling machine.
The best workshop machine

SURFACE GRINDER

Multiple Types Grinder Machine

Maximart provide MANUAL / HYDRAULIC / NC type grinder machine, customers can select the machine depends on their requirements.

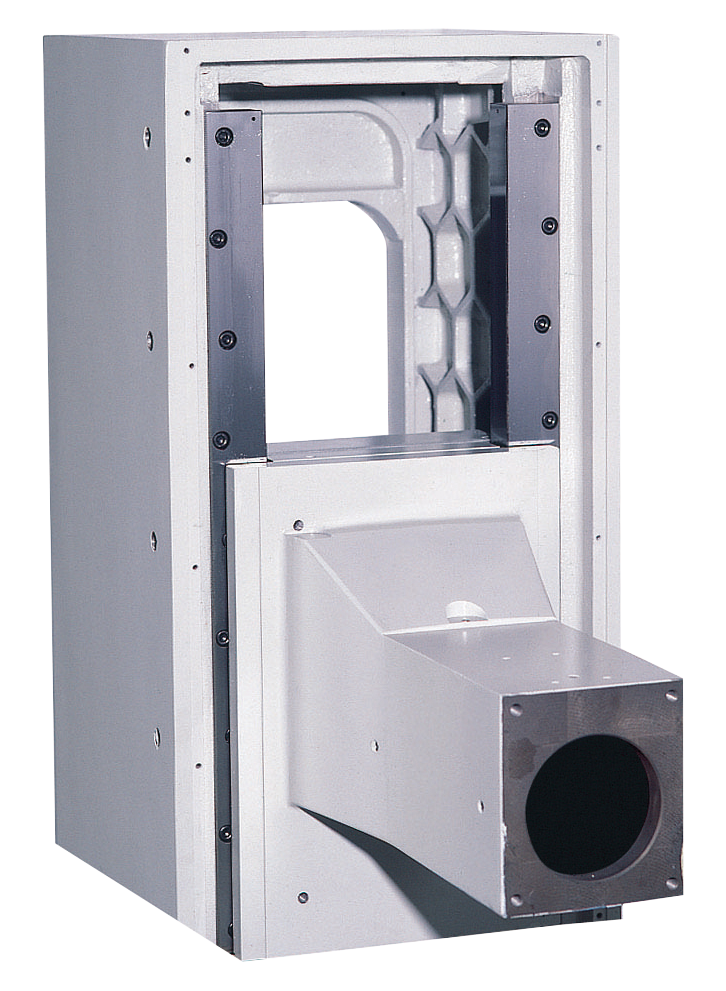

Honeycomb-ribbed column

Great strength stiffness, weight ratio, and high fatigue strength construction.
The honeycomb ribbed design greatly improves structural efficiency.

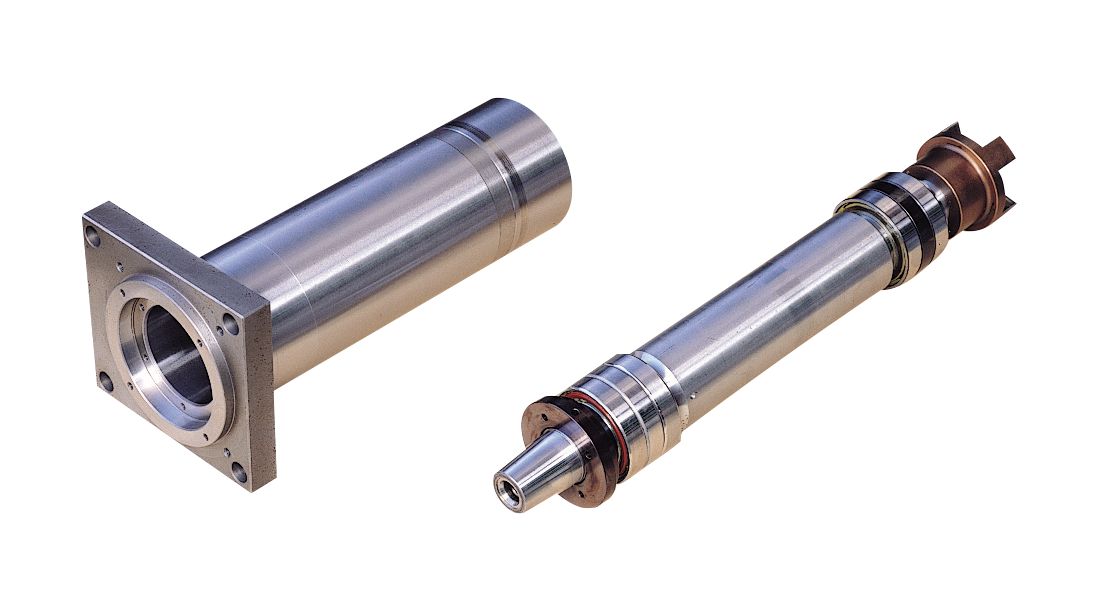

Great Precision Spindle

High precision spindle specially made for Surface Grinder.
Stability and Reliability with High Precision performance.

High Rigidity

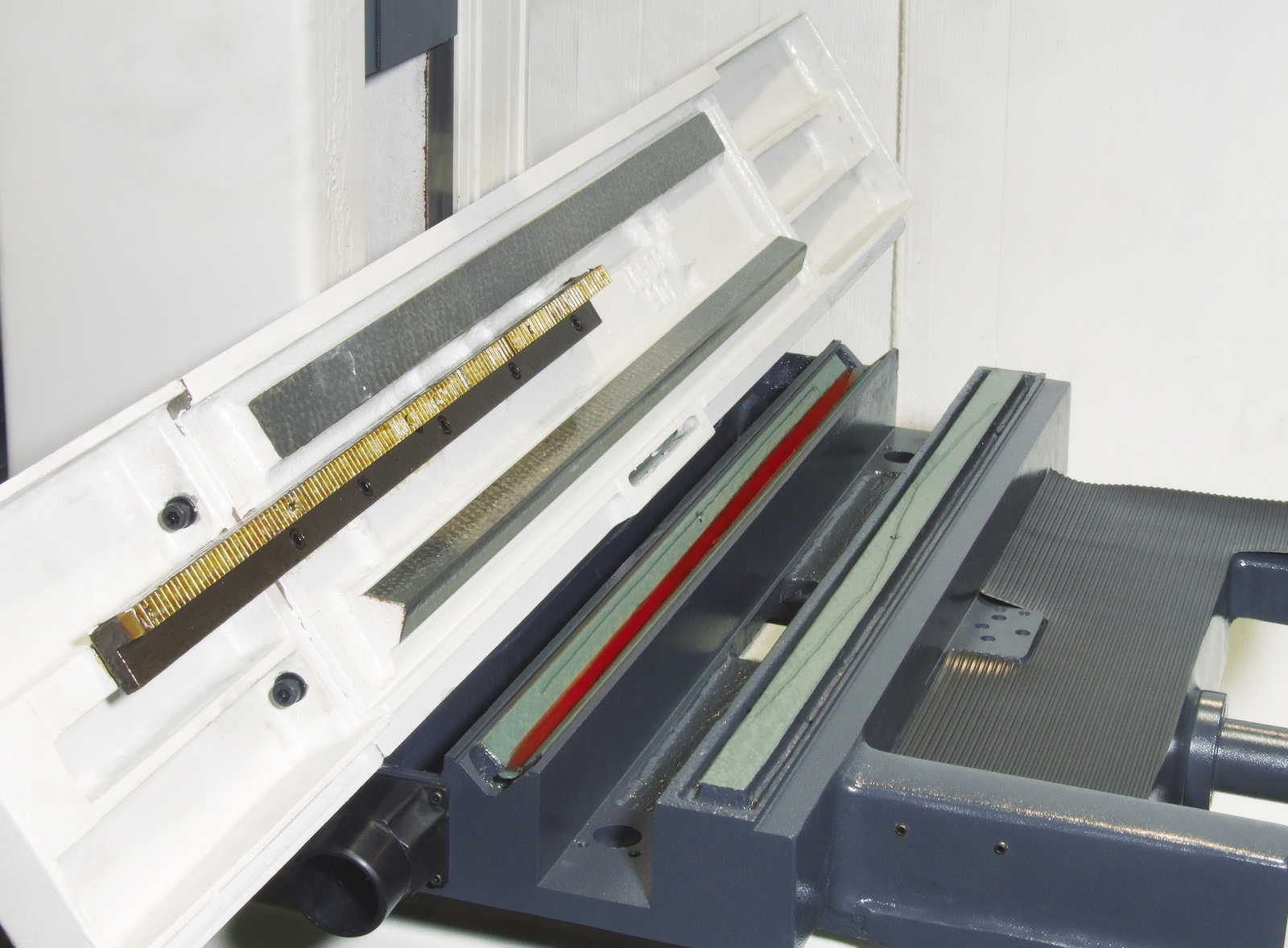

Double V base
(For Hydraulic / NC type)

Auto-lubrication function to resist the wear of guideways for lasting accuracy & damping. High grade anti-wear design (“TURBITE-B”-coated”) on all guideways.
The double V-shaped guideways are hand-scraped by experienced craftsman to ensure smooth and steady movement of saddle (Cross Feed Travel/Z –axis movement)

Steel wire type
Timing belt
Tranmission system
(For manual type )

High precision spindle specially made for Surface Grinder.
Stability and Reliability with High Precision performance.

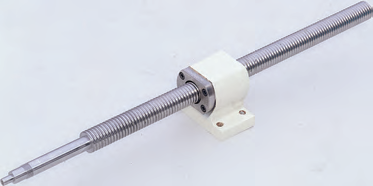

High Quality Cross feed ball screw

Cross feed travel (Z –axis movement) equipped with standard high grade Ballscrew, and powered by DC servo motor.
For high precision positioning, long using life, and high-speed forward and reverse transmission and conversion transmission

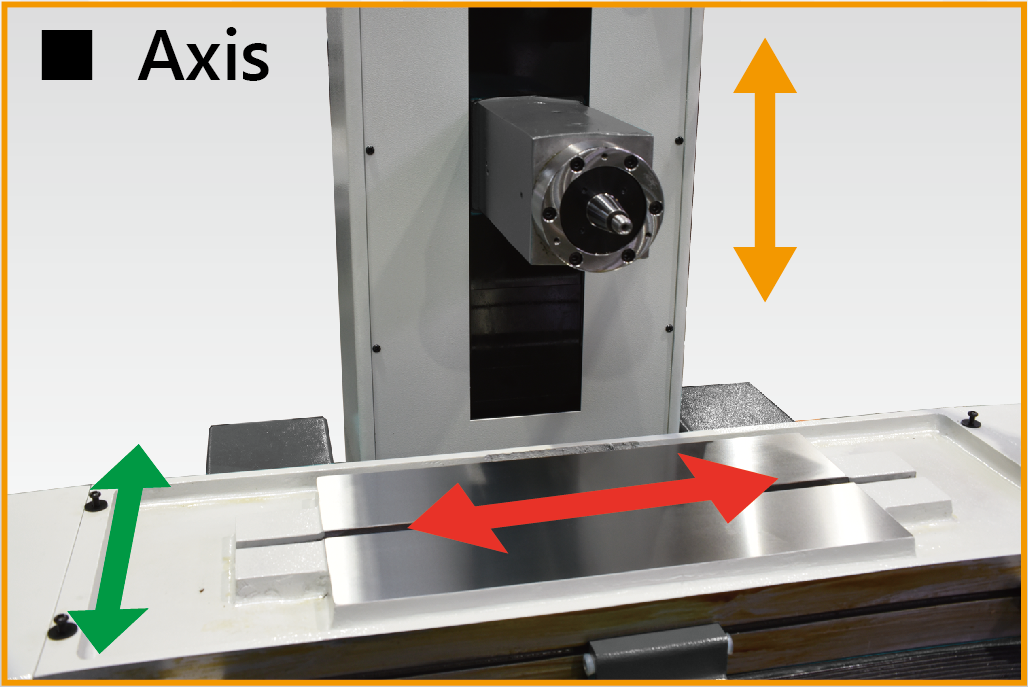

Multiple Working Axis (Hydraulic only)

Longitudinal Hydraulic / Crossfeed motorized / Rapid Up/Down motoruzed for Hydraulic machine model

Control Type

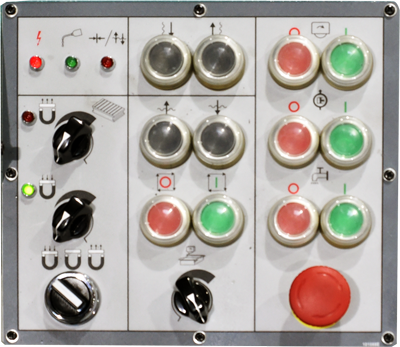

Hydraulic Type - I / II / III

  • Hydraulic Type controller has 3 types of axis control can be chosen.
  • Type I : Longitudinal Hydraulic (1-axis)
  • Type II : Longitudinal Hydraulic & Crossfeed motorized (2-axis)
  • Type III : Longitudinal Hydraulic & Crossfeed motorized & Rapid Up/Down motoruzed (3-axis)

NC User-oriented Controller

  • 7.2” Color Display w/ Touch screen
  • Embedded MPGs Mechanism for precise positioning
  • Chuck control section / (Opt.) Permanent/Electro/Inclinable chucks selections
  • Y/Z - axis Travel Setting
  • Grinding Mode switch
  • “One-stop Grinding Cycle” Precise Fine Surface

“One-stop Grinding Cycle” Precise Fine Surface

  • ■
    Vertical movement (grinding wheel) is displayed on the screen for instant spindle position. (Automatic feed minimum 1 μm)
  • ■

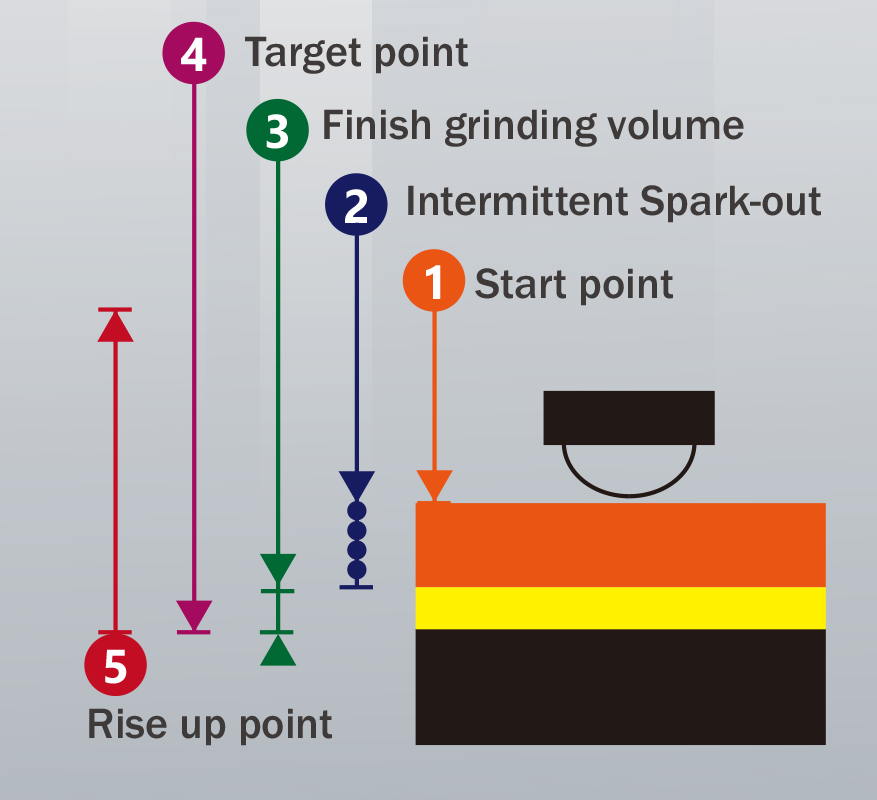

    Clear, and Graphic Grinding Size Input: Interactive visual setting on Start Point, Intermittent Spark-out, Finish Grinding Volume, Target Point, and Grinding Wheel Rising up Point.
  • ■
    Standard grinding wheel infeed (vertical movement) selection to fit any circumstances. (dualsides or one side of work table)
  • ■
    A preset speed function on hydraulic work table gives a stable and durable speed rate for each grinding performance.
  • ■
    Grinding wheel dressing speed adjusted on control unit.

NC Starting page (Language select opt.)

NC Downfeed page
(Rough grinding / Finish grinding / Sparkout setting)
Minimum display unit:
Y-axis: 0.001 mm, Z-axis: 0.001 mm

NC Setting of the grinding value

Choose your Models

Export the models for your factory, and enjoy the wonderful experience of Maximart's machine

SpECIFICATION
