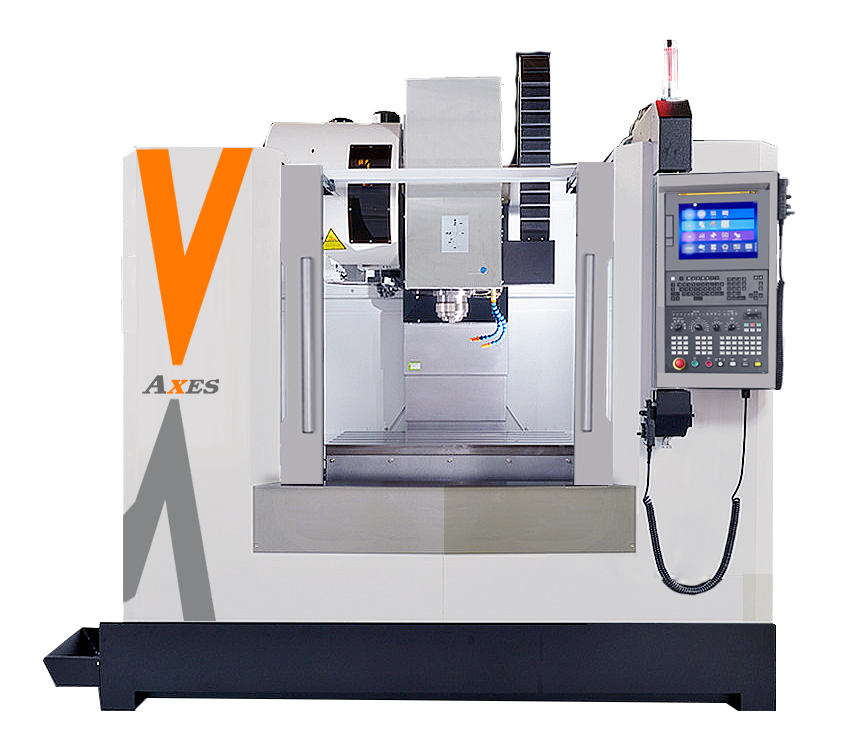

AX-850

Table Size

1000 x 850 mm

X / Y / Z axis Travel

850 x 550 x 550 mm

Spindle Taper

BT#40

Spindle Speed

10,000 rpm

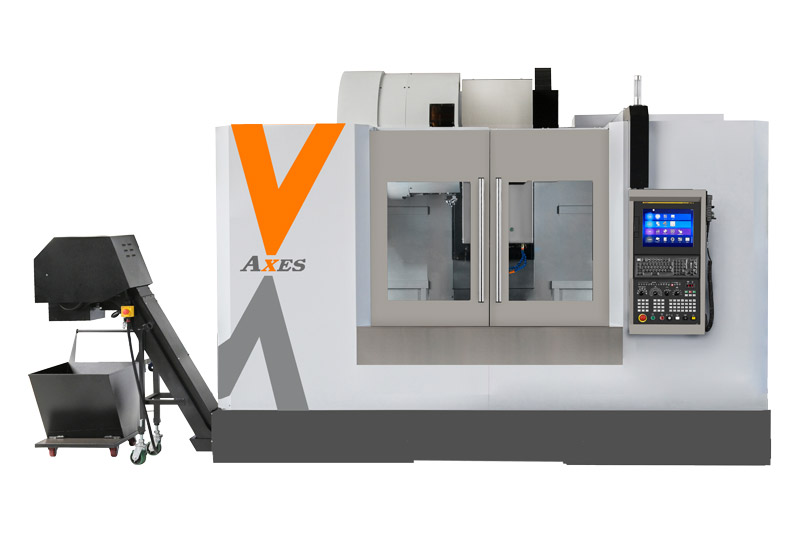

AX-1100

Table Size

1300 x 700 mm

X / Y / Z axis Travel

1100 x 720 x 700 mm

Spindle Taper

BT#40

Spindle Speed

10,000 rpm

AX-1300

Table Size

1400 x 700 mm

X / Y / Z axis Travel

1300 x 720 x 700 mm

Spindle Taper

BT#40

Spindle Speed

10,000 rpm

AX-1400

Table Size

1500 x 700 mm

X / Y / Z axis Travel

1400 x 720 x 700 mm

Spindle Taper

BT#40

Spindle Speed

10,000 rpm

FULL SPECIFICATION

Profile

Features

Controller

sPECIFICATION

Inquiry

Catalog

FEATURES

Spindles
  • ■
    10,000 - rpm Spindle Direct-Drive
  • ■
    Spindle Diameter : ​Ф150 mm
  • ■
    Spindle transmission : Belt type / Direct drive
Spindles Coolant
  • ■
    Spindle Coolant System
  • ■
    Spindle Air Blast before Tool-exchange
  • ■
    Spindle Side Air Blow Nozzle & Coolant Nozzle
  • ■
    Spindle All-time Air Curtain
Contorl Units
  • ■
    FANUC
  • ■
    MITSUBISHI
  • ■
    SIEMENS
  • ■
    HEIDENHAIN
  • ■
    Control Unit Handwheel
  • ■
    USB/SD/CF Card Interface
Chip & Coolant System
  • ■
    Chip Conveyor (Screw-drive, Machine Front Side)
  • ■
    Cutting Coolant System
  • ■
    Cutting Air System
  • ■
    Coolant Oil Tank
Tools Magazine
  • ■
  • ■
    24 pockets Arm-type ATC
Electrics & Certification
  • ■
    Maximart standard electrics system
Safety Device & Lubrication
  • ■
    Full Enclosure Machine Guard
  • ■
    Machine Auto Power-off Function
  • ■
    Machine Window w/ Safety Glasses
  • ■
    3 Colors Signal Light
  • ■
    Auto power off system
  • ■
    Automatic Central Lubrication System with Alarm Warning
X / Y / Z Axes Movement
  • ■
    X/Y/Z -axis high Precision Linear Guideway w/ Self-lube Device
  • ■
    Z -axis Brake Motor
  • ■
    X/Y/Z -axis Precision C3 Grade Ball screw
  • ■
    Complete Telescoping Cover
Product Options
  • ■
    Air Gun & Coolant Gun
  • ■
    Rigid Tapping
  • ■
    Leveling Pads & Bolts
  • ■
    Tools & Toolbox
  • ■
    Operational Manual & Parts List
  • ■
    LED Work Light
  • ■
    3-Color Signal Light
  • ■
    Ethernet Port
Spindles
  • ■
  • Spindle Speed 12000/15000 rpm Upgrade
Spindles Coolant
  • ■
  • Through Spindle Coolant Supply 20 bar ~ 70 bar Selection
  • ■
    ATS System (Air though Spindle)
  • ■
    ATS System + CTS System
Contorl Units
  • ■
    Control Unit Upgrade
  • ■
  • CNC Control Unit System Oversea Warranty
Electrics & Certification
  • ■
    CE/EMC Marking (including EN ISO13849-1)
  • ■
    Transformer to suit local Power Supply
Tools Magazine
  • ■
  • ■
  • Expanded 30 pc Tool Pocket Arm-type ATC Magazine. (Max. Tool Diameter Ф 76.)
  • ■
    Expanded 48/60 pc Tool Pocket Arm-type ATC Magazine
  • ■
    Expanded BT#50 30/40 pc Tool Pocket Arm-type ATC Magazine
  • ■
    Expanded BT#50 32/40 pc Tool Pocket Arm-type ATC Magazine
  • ■
    Tool Interface Selection (DIN #40, HSK-A63)
Chip & Coolant System
  • ■
    Chip Conveyor (Chain type, left-side) w/ Chip Cart
  • ■
    Chip Cart
  • ■
    Chip Washing System (Rear Y axis)
  • ■
    Coolant / Oil System
X / Y / Z Axes Movement
  • ■
  • Heidenhain X/Y/Z axes Linear Scale (Absolute type 0.1μm Resolution)
  • ■
    Extended Z axis travel
  • ■
    Z axis auto ascend when power faliure
4th Axis preparation
  • ■
    Machine Preparation for 4th -axis Application + wiring & connectors without drive and motor
  • ■
    Complete Module Package for 4th axis Application, including PLC/Wiring, Connectors, Driver, Motor
  • ■
    4th axis CNC Rotary Table Application
Automation & Probing
  • ■
    Automatic Tool Length / Diameter Probe Setting Device
  • ■
    Automatic Workpiece Measurement System Device

Control unitS

FANUC 0i-MF PLUS

  • Enhanced Safety
  • Highly Customizable
  • Improved Processing Power
  • Shop Floor Programming
  • High Performance
  • Additional Functions Available

MITSUBISHI M80

  • Panel-in type, a control unit with integrated display
  • Provided in package (TypeA/TypeB) for easier selection
  • Windows-less display provides easy operability
  • High-speed, high-accuracy, high-quality cutting through SSS-4G control
  • High productivity and high quality are our primary focus
  • M80 Series brings out the full potential of machine tools
  • M80 Series includes SSS control and inclined surface machining features.
  • Improved milling features using a tool spindle
  • Multi-axis multi-part system control features
  • Real-time tuning helps maintain machine stability
  • Significantly easier programming

SIEMENS 828D

  • Capacitive 15.6" color display in the 16:9 format
  • Preconfigured sidescreen
  • Intuitive multi-touch operation
  • Full QWERTY keyboard
  • Softkey selection using touch function
  • Simple data transfer using front interfaces with degree of protection IP65
  • Proximity/distance sensor for smart display control
  • Die-cast magnesium panel front with scratch-resistant glass
  • Operators can wear work gloves
  • Rugged and maintenance free

HEIDENHAIN TNC 620/640

  • 24 control loops (22 with functional safety), including up to 4 spindles
  • Version with multi-touch screen
  • Milling, turning, and grinding operations
  • User-friendly programming in HEIDENHAIN Klartext or with G codes
  • Extensive machining and touch-probe cycle packages
  • Fast block processing time (0.5 ms)
  • High-end performance for perfect surfaces and exceptional accuracy
  • Dynamic collision monitoring for greater safety and reliability

Technical Table

View the Technical Table
