Home / Machines / Surface Grinder / MSG-series / MSG-H

618
818

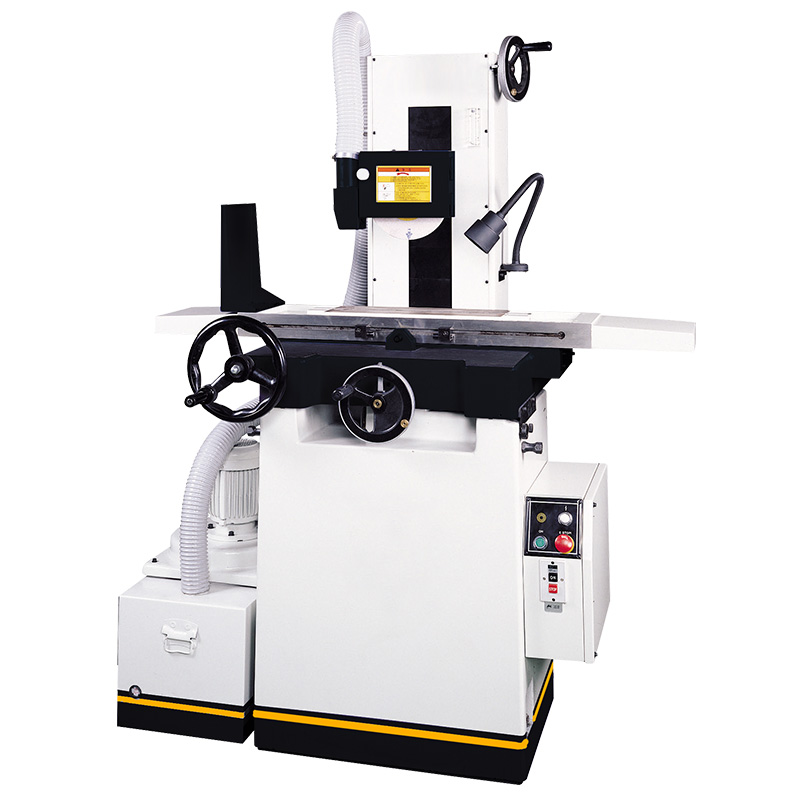

MSG-618 / MSG-618F (With Micro Down Feed)

Table Size

152 x 460 mm

Max Grinding Width x Length

178 x 480 mm

Spindle to Table distance

460 mm

Standard Grinding Drive

203 mm diameter
12.7 mm width / max. 19 mm
31.75 mm bore

MSG-818 / MSG-818F (With Micro Down Feed)

Table Size

203 x 460 mm

Max Grinding Width x Length

238 x 480 mm

Spindle to Table distance

460 mm

Standard Grinding Drive

203 mm diameter
12.7 mm width / max. 19 mm
31.75 mm bore

FULL SPECIFICATION

FEATURES

STANDARD ACCESSORIES

■

Wheel Extrace Screw & Nut
■

Balancing
■

Levelling Screw With Blocks
■

Whell Flange
■

Grinding Wheel
■

Tool Box With Tools
■

Auto Lubrication System
■

Diamond Dresser
■

Touch-up Paint
■

Cross-feed Ballscrew
■

Micro down-feed hand wheel (618-F / 818-F only)

Technical Table

Explore the Specification and Accessories

View PDF
