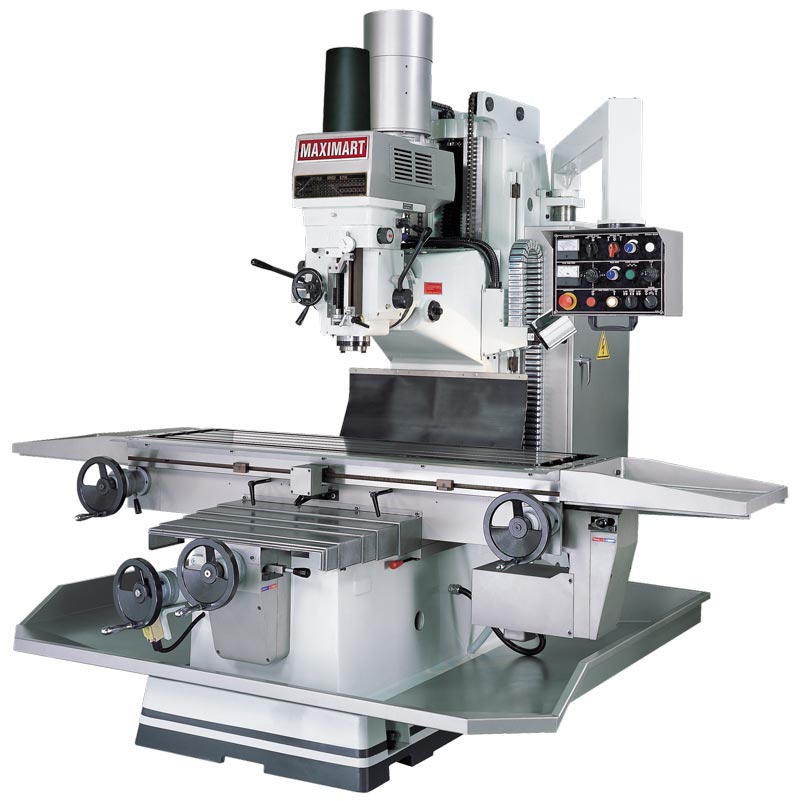

MX-B5  A / S / IV

Table Size

1575 x 425 mm
62" x 16-3/4"

X / Y / Z axis Travel

X: 1200 mm / 47.24"
Y:   580 mm / 22.83"
Z:   600 mm / 23.62"

Quill Travel

152 mm / 6"

Spindle Speed (A type)

Step Pulley (10 step)
50 Hz / 55 - 2580 rpm
60 Hz / 60 - 3000 rpm

Spindle Speed (S type)

Mechanical Variable
50 Hz / 55 - 3550 rpm
60 Hz / 70 - 4300 rpm

Spindle Speed (IV type)

Inverter Variable
4P / 140 - 3650 rpm
8P /   55 - 1115 rpm

Profile

Features

Controller

sPECIFICATION

Inquiry

Catalog

FEATURES

Electric on Milling Machine

Electrical Cabinet / Electrical Enclosure

Standard electrical component: 220/380V , 3PH

Standard

X/Y/Z Axes Infinitely Variable Speed Feeding

AC Inverter Control X/Y Axes up to maximum 1,100 mm/min Z Axis 788 mm/min

standard

CE/EMC EN ISO 13849-1

CE Marking approved machine -European Area (Transformer included)

Optional

CSA Standard Electrics

CSA certified machine - Canada

Optional

Spindle Assembly

CP4 Class Precision Bearings

Hardened and ground Spindle

STANDARD

NT#40 Spindle Taper

Most common and available tool interface

STANDARD

Main Spindle 5 hp with Brake Function

Electromagnetic brake spindle motor

STANDARD

Powerful Motor upgrade

Powerful Motor Upgrade is available upon request

optional

Safety Guard

Z Axis Ballscrew Protection

Telescopic cover remain precise after years of machining

STANDARD

Z Axis Slide Way Protection

Telescopic cover protect Z axis guidway for smooth movement

OPTIONAL

Spindle Safety Guard

with interlock mechanism comply with CE / CSA Standards

OPTIONAL

Milling Machine Table Guards

Acrylic Door Design without interlock mechanism

OPTIONAL

Milling Machine Table Guards (Enhanced)

Aluminum Door Design / Interlock mechanism / CE Marking Regulation

OPTIONAL

Machine Rear Splash Guards

Both sides rear chip protection,  CE/CSA standard

OPTIONAL

Control Panel Unit & Digital Readout System

Integrated Multifunction Control Panel Box

Exclusive MAXIMART mill panel

STANDARD

FAGOR INNOVA 2 Axes DRO System

Accurate linear feedback

OPTIONAL

FAGOR INNOVA 3 Axes DRO System

Optimal milling processing

OPTIONAL

MITUTOYO Digital Readouts System

2 axes / 3 axes linear guide upon selection

OPTIONAL

NEWALL Digital Readouts System

2 axes / 3 axes linear guide upon selection

OPTIONAL

Drawbar

Air Power Drawbar

Standard accessory on CE approved machine / Suit for NT#40 taper

OPTIONAL

Electric Power Drawbar

Suit for NT#40 taper

OPTIONAL

Coolant System

CNC Type Chip Tray

Heavy-duty chip collecting tray

STANDARD

Coolant System

Complete coolant unit with pump

STANDARD

Coolant / Oil Skimmer

Excellent water-oil separating

OPTIONAL

Machine Assembly & Feature

High Grade MEEHANITE® Quality Casting Iron

Superior rigidity and wear resistance

STANDARD

4 Hand Wheels Axis Movement Design

X axis both side (left & right) hand wheels Manual/Auto mode selection

STANDARD

Box-way Design on Y/Z Axes

Y/Z axes hardened and ground square ways
Y axis slide-way front steel cover & rear rubber cover

STANDARD

Milling Machine Work Light

Low voltage Halogen work light

STANDARD

Heightened Milling Machine Column

Customized 100/150/200 mm Riser Block

OPTIONAL

Automatic Lubrication System with Alarm

MAXIMART bed mill is automatically lubricated

standard

Toolings & Selected Parts Option

Milling Chuck with Collets Package

NT40 Spindle Taper Fit 7 pc / 15 pc upon selection

OPTIONAL

52 pcs Clamping Kits

Heat-treated steel black oxide finish

OPTIONAL

Angle-fixed Vise

For heavy-duty machining and retained accuracy

OPTIONAL

K-type Vise

For heavy-duty machining and retained accuracy

OPTIONAL

CONTROLLER & DRO

Integrated Multi-function Control Panel Box (Standard)

  • Mechanical /Inverter-drive variable speed with 2 speed range
  • X/Y/Z axes movement control
  • Tachometer plate reference (rpm)
  • Emergency stop
  • Coolant pump control
  • Work light control
  • Standard for MX-series only

FAGOR 2-Axis DRO for milling machine (Optional)

  • High quality, reliable linear encoders
  • LED screen display
  • MAXIMART MX-series Bed mill fit
  • mm/inch conversion available
  • Multi-purpose milling applications support
  • Bolt-hole drilling function
  • Linear drilling calculation
  • Tool radius compensation
  • Corner rounding/machining of arcs
  • Part centering cycles
  • Part alignment Multiple part-zeros (datum points)

FAGOR 3-Axis DRO for milling machine (Optional)

  • High quality, reliable linear encoders
  • LED screen display
  • MAXIMART MX-series Bed mill fit
  • mm/inch conversion available
  • Multi-purpose milling applications support
  • Bolt-hole drilling function
  • Linear drilling calculation
  • Tool radius compensation
  • Corner rounding/machining of arcs
  • Part centering cycles
  • Part alignment Multiple part-zeros (datum points)

MITUTOYO DRO for milling machine  (Optional)

  • DRO system for 2/3/4 axes milling application
  • LED screen display
  • MAXIMART MX-series Bed mill fit
  • mm/inch conversion available
  • Multi-purpose milling applications support
