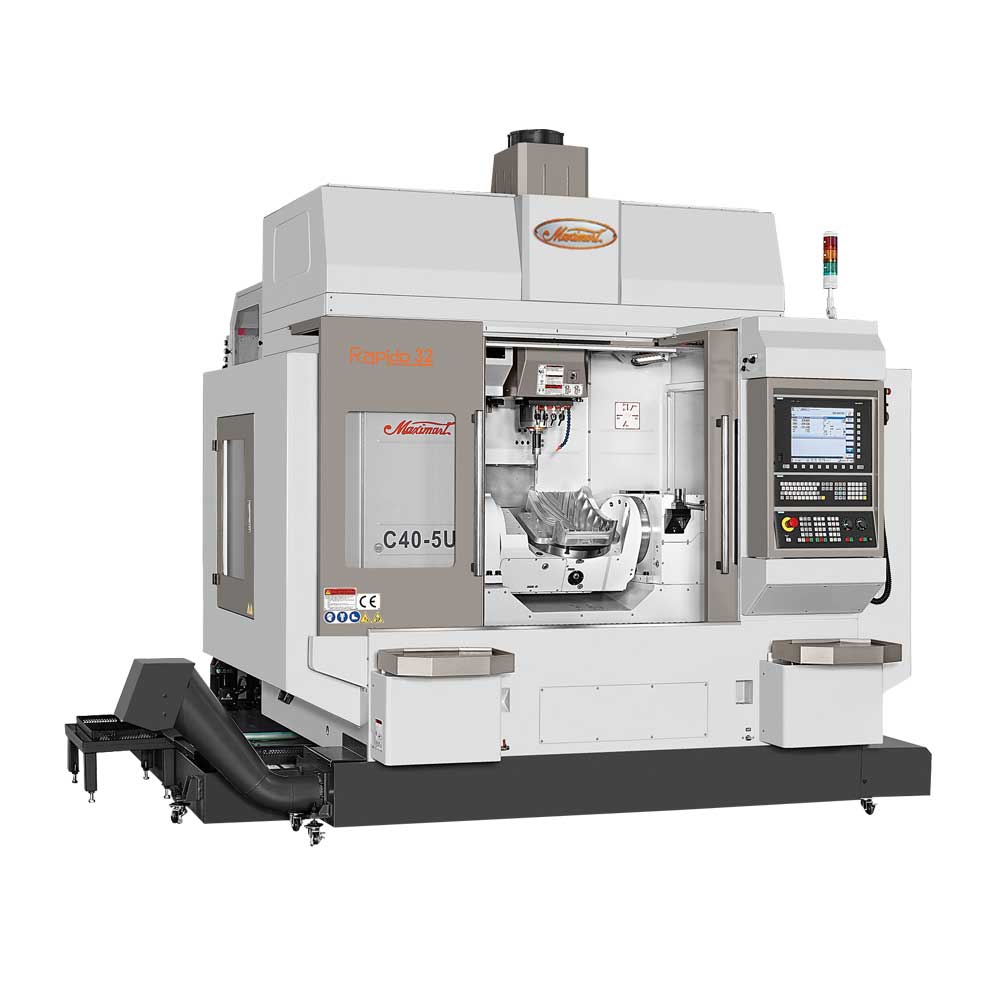

C​40-5U

Full 5-axis Simultaneously ​Cutting Center

Table Size

Ф 410 mm

X / Y / Z axis Travel

760 ​× 700 ​× 610 mm

A / C axis Travel

A-axis: +30 / -120°, C-axis: 360°

Spindle Speed

12,000 rpm

Control unit

HEIDENHAIN / SIEMENS

C​40-5A

5-Sided (4+1) ​Cutting Center

Table Size

Ф 410mm

X / Y / Z axis Travel

760 ​× 700 ​× 610 mm

A / C axis Travel

A-axis: +30 / -120°, C-axis: 360°

Spindle Speed

12,000 rpm

Control unit

SIEMENS / FANUC

FULL SPECIFICATION

Profile

Features

Controller

sPECIFICATION

Inquiry

Catalog

FEATURES

Spindles
  • ■
    12,000 - rpm Spindle Direct-Drive
  • ■
    Spindle Taper (Tool Interface): ​BBT#40 / DIN#40 / CAT#40
  • ■
    Standard Spindle coolant unit
  • ■
    Spindle Nose Coolant Jet Flushing
  • ■
    Spindle Side Air Blow & Coolant Nozzle & All-time Air Curtain
Coolant & Chip system
  • ■
    Coolant Tank Capacity: 420L
  • ■
    Coolant motor : 380V 50HZ 0.85kW 2kg/cm2-67L/min
  • ■
    Coolant Spray Gun : 220V 60HZ 0.1.27kW 3kg/cm2-67L/min
  • ■
    Chip Conveyor (Screw-drive, Left Discharge, Machine Front Side)
  • ■
    Chip Removal (Screw-drive, both sides machine working area)
Contorl Units
  • ■
    FANUC (5A)
  • ■
    SIEMENS (5U/5A)
  • ■
    HEIDENHAIN (5U)
Tools Magazine
  • ■
  • ■
  • Arm Type 30 Tools ATC with Quick Tool Change Device
  • ■
    Max. Tool Length 300 mm
  • ■
    Max. Tool Weight 7 kg/pc
  • ■
    Max. Tool Diameter ø76mm
  • ■
    Tool Selection: Bi-direction Random Shortest Path
  • ■
    BLUM Tool Setting Probe (Tool Length Measurement, Tool Break Detection) w/ Cable Connection
Electrics & Certification
  • ■
    Maximart standard electrics system
Safety Device & Lubrication
  • ■
    Full Enclosure Machine Guard
  • ■
    Machine Auto Power-off Function
  • ■
    Z -axis Auto Ascend when Power Failure (Fanuc only)
  • ■
    Machine Window w/ Safety Glasses
  • ■
    3 Colors Signal Light
Axes Movement
  • ■
    X/Y/Z -axis high Precision Linear Guideway w/ Self-lube Device
  • ■
    Automatic Central Lubrication System with Alarm
  • ■
    Z Axis Brake Motor Without Counter-balance Block
  • ■
    X/Y/Z -axis Precision C1 Grade Ball screw
  • ■
    Direct-drive transmission
  • ■
    A Axis with Heidenhain Angle Encoder
Product Options
  • ■
    Air Gun & Coolant Gun
  • ■
    Rigid Tapping
  • ■
    Tools & Toolbox
  • ■
    Operational Manual & Parts List
  • ■
    Fluorescent Work Lamp (2 sets)
  • ■
    LED Work Light × 2
  • ■
    Ethernet Port
Spindles
  • ■
    15000rpm Direct Drive Spindle
  • ■
    HSK-63A Spindle Tapper Spindle
Spindles Coolant
  • ■
  • Spindle Front Side Coolant Jet Flushing
  • ■
    Through Spindle Coolant Supply 20 bar ~ 70 bar Selection
  • ■
    Coolant Cooling System
  • ■
    Oil Mist Coolant System
  • ■
    Oil Mist Filtering & Recycle System
Contorl Units
  • ■
    FANUC / MITSUBISHI / SIEMENS / HEIDENHAIN  Controller Upgrade
  • ■
  • 24 Months warranty on control unit
  • ■
    CNC Control Unit System Oversea Warranty
Tools Magazine
  • ■
  • ■
    Arm Type 48/60 Tool ATC with Quick Tool Change Device
  • ■
    Tool Length Measurement System
  • ■
    Workpiece Measurement System
Chip & Coolant System
  • ■
    Chip Removal System
  • ■
    Chip Conveyor (scraper type, left discharge, machine front side)
  • ■
    Chip Conveyor (chain type, left discharge, machine front side)
  • ■
    Chip Cart
  • ■
    Working Area Two-sided Chip Flush System
Electrics & Certification
  • ■
    New CE/EMC Mark (includeing EN ISO13849-1)
  • ■
    Transformer to Suit Local Power
  • ■
    Voltage Regulator
Safety Device & Lubrication
  • ■
    Main Door (front-side) Interlock + Feed Hold Device
  • ■
    Electrical Cabinet with Main Breaker
Axes Movement
  • ■
    X/Y/Z -axis upgrade Internally Cooled Ballscrews
  • ■
    Absolute Type 0.1u Resolution ​Heidenhain X/Y/Z -axis Linear Scale with Air-blow Protection
  • ■
    C Axis Heidenhain Angle Encoder

Control unitS

FANUC 0i-MF PLUS

  • Enhanced Safety
  • Highly Customizable
  • Improved Processing Power
  • Shop Floor Programming
  • High Performance
  • Additional Functions Available

SIEMENS 828D

  • Capacitive 15.6" color display in the 16:9 format
  • Preconfigured sidescreen
  • Intuitive multi-touch operation
  • Full QWERTY keyboard
  • Softkey selection using touch function
  • Simple data transfer using front interfaces with degree of protection IP65
  • Proximity/distance sensor for smart display control
  • Die-cast magnesium panel front with scratch-resistant glass
  • Operators can wear work gloves
  • Rugged and maintenance free

SIEMENS ONE

  • Capacitive 15.6" color display in the 16:9 format
  • Preconfigured sidescreen
  • Intuitive multi-touch operation
  • Full QWERTY keyboard
  • Softkey selection using touch function
  • Simple data transfer using front interfaces with degree of protection IP65
  • Proximity/distance sensor for smart display control
  • Die-cast magnesium panel front with scratch-resistant glass
  • Operators can wear work gloves
  • Rugged and maintenance free

HEIDENHAIN TNC 640

  • 24 control loops (22 with functional safety), including up to 4 spindles
  • Version with multi-touch screen
  • Milling, turning, and grinding operations
  • User-friendly programming in HEIDENHAIN Klartext or with G codes
  • Extensive machining and touch-probe cycle packages
  • Fast block processing time (0.5 ms)
  • High-end performance for perfect surfaces and exceptional accuracy
  • Dynamic collision monitoring for greater safety and reliability

Technical Table

Explore the Specification of MAXIMART C-series
