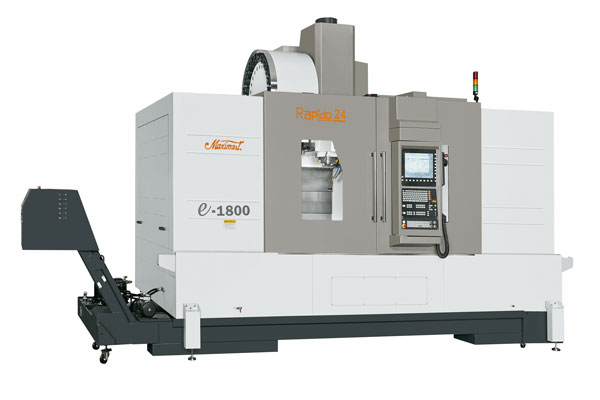

SPECIAL PROFILE for -1800

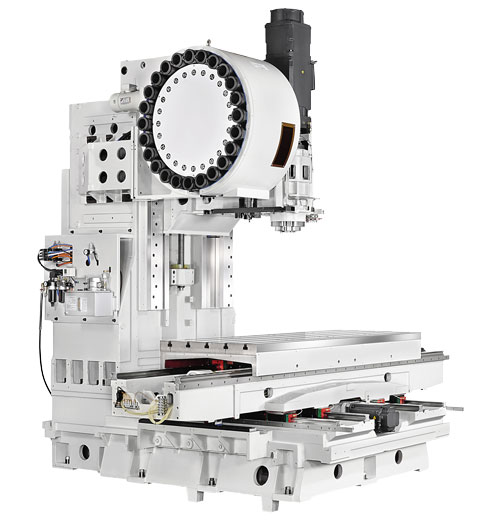

Machine Frame

The major cast iron parts are analyzed by “Finite Element Analysis software”, combined with additional rib reinforcement to achieve symmetrical machine structure that provides best dynamic performance after years of use.

Oversized box type machine column and machine bed, assuring extra high rigidity of machine frame.

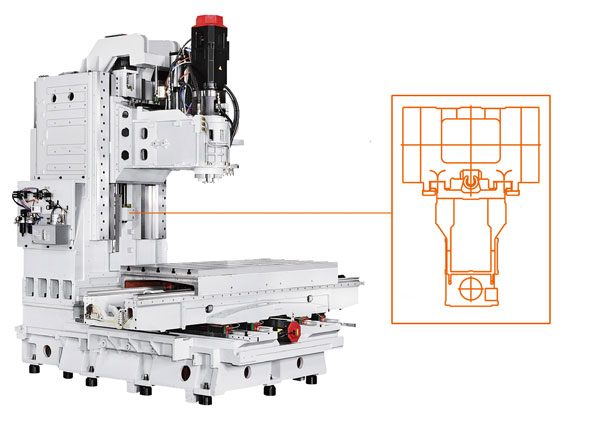

Embraced Z Axis Boxway

Z axis movement is firmly supported by the hardened and ground steel block from outside, providing an increase of rigidity and accuracy.

Four linear ways and 2 auxiliary linear guideways on machine bed to support saddle while X axis is moving.

Y Axis 4+2 Linear Ways on Bed

Machine bed is mounted with four roller type linear ways in combination with 2 auxiliary linear guideways in between, which allows model e-1800 to exhibit heavy loading-resistance capacity and outstanding stability.

High Rigidity roller type guideway on X/Y axes and box-way design on Z axis exhibit outstanding stability especially when performing high speed machining.

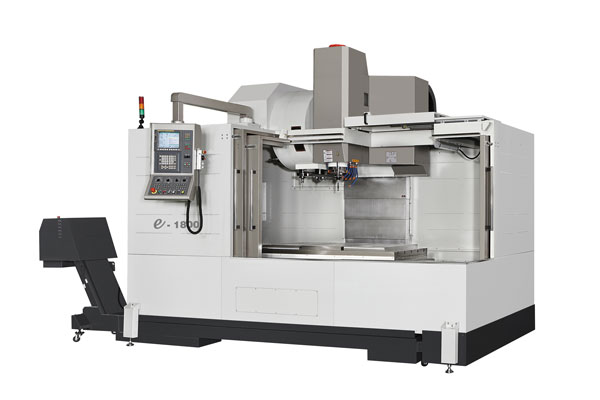

Pneumatic Operated Top Guard

When top guard is opened, the machine provides an accessible space allowing workpiece to be loaded from the top by crane. It is beneficial and efficient way for workpiece loading/unloading job.

When the top guard is closed, the machine provides an enclosed machining space that prevents oil mist from splashing, ensuring a clean and safe working environment.

Dual-side Opening Sheetmetal Guard
e-1800 only

FEATURES

STANDARD ACCESSORIES
OPTIONAL ACCESSORIES

Spindles

■

10,000 - rpm Spindle Direct-Drive
■

Spindle Diameter : 90 mm on model: e-1800

Spindles Coolant

■
Spindle Coolant System
■

Spindle Air Blast before Tool-exchange
■

Spindle Nose Coolant Jet Flushing
■

Spindle Side Air Blow Nozzle & Coolant Nozzle
■

Spindle All-time Air Curtain

Contorl Units

■

FANUC
■

MITSUBISHI
■

SIEMENS
■

HEIDENHAIN

Tools Magazine

■
■
24 pockets Arm-type Automatic Tool Change Mechanism (e-1800)
■

24 pockets Arm-type Automatic Tool Change Mechanism (BT#50) (e-1300 G5 / e-1800 G5)

Chip & Coolant System

■
Chip Conveyor : Chain-type, Machine Front Side

Electrics & Certification

■

Maximart standard electrics system

Safety Device & Lubrication

■

Full Enclosure Machine Guard
■

Machine Auto Power-off Function
■

Z -axis Auto Ascend when Power Failure (Fanuc / Mitsubishi only)
■

Machine Window w/ Safety Glasses
■

3 Colors Signal Light

X / Y / Z Axes Movement

■

X/Y/Z -axis high Precision Linear Guideway w/ Self-lube Device
■

Standard Z -axis Brake Motor
■

X/Y/Z -axis Precision C3 Grade Ball screw
■

Direct-drive transmission

Product Options

■

Air Gun & Coolant Gun
■

Rigid Tapping
■

Leveling Pads & Bolts
■

Tools & Toolbox
■

Operational Manual & Parts List

Spindles

■

12,000 - rpm Spindle Direct-Drive without Coolant through spindle function
■

12,000 - rpm Spindle Direct-Drive with Coolant through spindle function

Spindles Coolant

■

8 bar - Coolant Supply through Spindle with Filtering System
■

20 bar - Coolant Supply through Spindle with Filtering System
■

20 bar - Coolant Supply through Spindle with Centrifugal Separator
■

50 bar - Coolant Supply through Spindle with Paper Band Filter
■

70 bar - Coolant Supply through Spindle with Paper Band Filter
■

** Spindle Motor w/ Coolant through Spindle (CTS) Function must be selected**

Contorl Units

■

FANUC / MITSUBISHI / SIEMENS / HEIDENHAIN Controller Upgrade
■
24 Months warranty on control unit

Tools Magazine

■
■
Arm-type 40 pcs tool magazine upgrade BT#40 (e-1800)
■

Arm-type 32 pcs tool magazine upgrade BT#50 (e-1800)
■

Arm-type 40 pcs tool magazine upgrade BT#50 (e-1800)
■

DIN40 (DIN 69871/69872) instead of BT40 Spindle Taper
■

HSK-A63 instead of BT40 Spindle Taper

Chip & Coolant System

■

Chip Conveyor : Scraper type, left-side with Chip Cart
■

Chip Conveyor : Chain type, left-side with Chip Cart
■

Chip Cart
■

Extra Pump for Water Spray Gun
■

Coolant / Oil Skimmer

Electrics & Certification

■

CE/EMC Marking (including EN ISO13849-1)
■

Transformer to suit local Power Supply

Safety Device & Lubrication

■

Main Door (front-side) Interlock + Feed Hold Device
■

Electrical Cabinet with Main Breaker
■

Dual-side Opening Machine Guard Only available on model: e-1800

X / Y / Z Axes Movement

■

X/Y/Z -axis under Heidenhain Absolute 0.1μm Linear Scales
■

Extended Y -axis travel to 710mm on model: e-1100/1300
■

Extended Z -axis travel 220mm on model: e-850/1000/1100/1300
■

Extended Z -axis travel 300mm on model: e-1800
■

200mm Riser Block on Column on model: e-600/750(A)

4th Axis preparation

■

Wiring + Plug Preparation for 4th -axis w/o Driver and Motor
■

4th -axis Driver + Motor + PLC Package
■

CNC Rotary Table

Automation & Probing

■

Renishaw - TS-27R - Tool Setting Probe system + Software
■

Renishaw - OMP400 - Workepiece Measurement + Software
■

Renishaw - RMP40 - Workpiece Measurement + Software
■

Blum - Z-Nano - Tool Setting Probe system + Software
■

Blum - ZX-Speed - Tool Setting Probe system + Software

Control unitS

FANUC 0i-MF PLUS

Enhanced Safety
Highly Customizable
Improved Processing Power
Shop Floor Programming
High Performance
Additional Functions Available

MITSUBISHI M80

Panel-in type, a control unit with integrated display
Provided in package (TypeA/TypeB) for easier selection
Windows-less display provides easy operability
High-speed, high-accuracy, high-quality cutting through SSS-4G control
High productivity and high quality are our primary focus
M80 Series brings out the full potential of machine tools
M80 Series includes SSS control and inclined surface machining features.
Improved milling features using a tool spindle
Multi-axis multi-part system control features
Real-time tuning helps maintain machine stability
Significantly easier programming

SIEMENS 828D

Capacitive 15.6" color display in the 16:9 format
Preconfigured sidescreen
Intuitive multi-touch operation
Full QWERTY keyboard
Softkey selection using touch function
Simple data transfer using front interfaces with degree of protection IP65
Proximity/distance sensor for smart display control
Die-cast magnesium panel front with scratch-resistant glass
Operators can wear work gloves
Rugged and maintenance free

HEIDENHAIN TNC 640

24 control loops (22 with functional safety), including up to 4 spindles
Version with multi-touch screen
Milling, turning, and grinding operations
User-friendly programming in HEIDENHAIN Klartext or with G codes
Extensive machining and touch-probe cycle packages
Fast block processing time (0.5 ms)
High-end performance for perfect surfaces and exceptional accuracy
Dynamic collision monitoring for greater safety and reliability

e-500 / e-500L

e-600 ~ e-1300(y+)

e-1800

-1800

Sample Title

Sample Title

Table Size

X / Y / Z axis Travel

Spindle Taper

Spindle Speed

SPECIAL PROFILE for -1800

Machine Frame

Embraced Z Axis Boxway

Y Axis 4+2 Linear Ways on Bed

Pneumatic Operated Top Guard

Dual-side Opening Sheetmetal Guard *e-1800 only*

FEATURES

Spindles

Spindles Coolant

Contorl Units

Tools Magazine

Chip & Coolant System

Electrics & Certification

Safety Device & Lubrication

X / Y / Z Axes Movement

Product Options

Spindles

Spindles Coolant

Contorl Units

Tools Magazine

Chip & Coolant System

Electrics & Certification

Safety Device & Lubrication

X / Y / Z Axes Movement

4th Axis preparation

Automation & Probing

Control unitS

FANUC 0i-MF PLUS

MITSUBISHI M80

SIEMENS 828D

HEIDENHAIN TNC 640

Technical Table

Need more information? e-series Rapido VMC catalog
