-600

Table Size

750 x 420 mm

X / Y / Z axis Travel

600 x 420 x 450 mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-750

Table Size

850 x 420 mm

X / Y / Z axis Travel

750 x 420 x 450 mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-750A

Table Size

850 x 492 mm

X / Y / Z axis Travel

750 x 420 x 450 mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

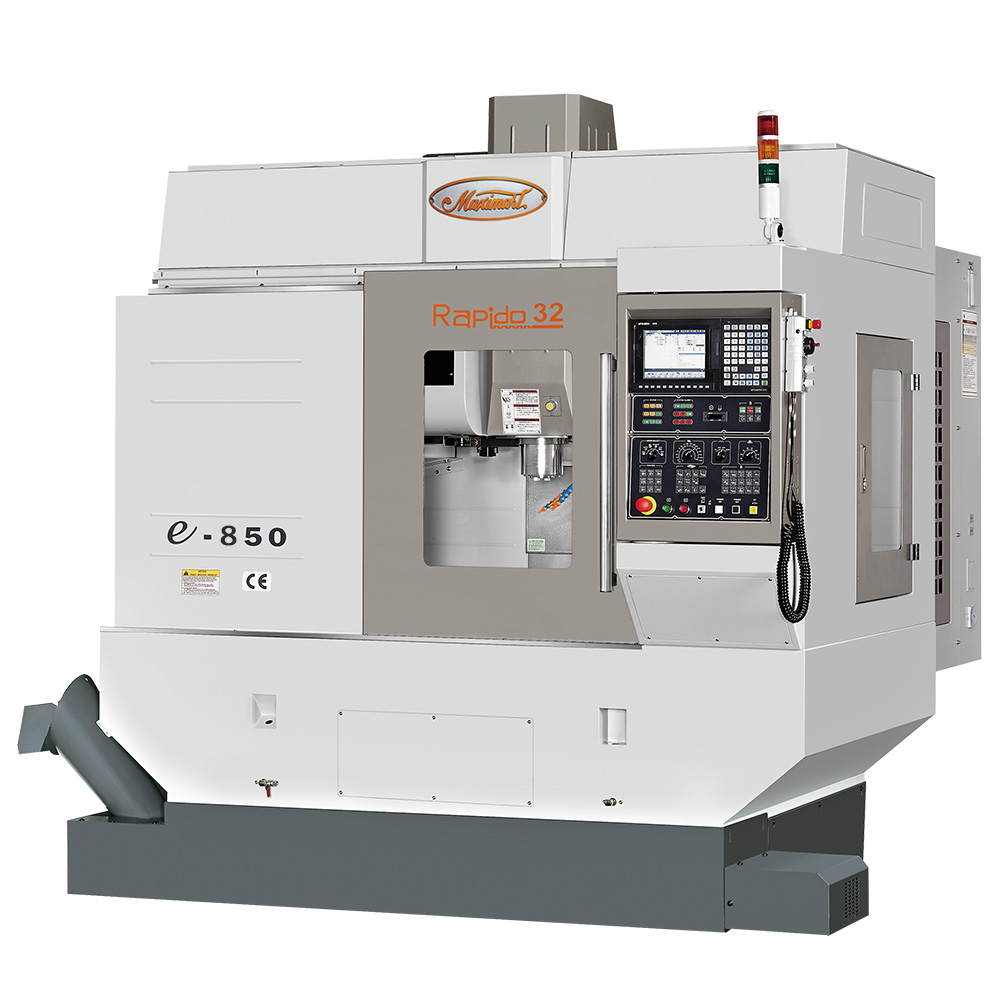

-850

Table Size

1000 x 520 mm

X / Y / Z axis Travel

850 x 520 x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-1000

Table Size

1100 x 520 mm

X / Y / Z axis Travel

1000 x 520 x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-1100

Table Size

1250 x 610 mm

X / Y / Z axis Travel

1100 x 610 (opt.710) x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-1100 y+

Table Size

1250 x 610 mm

X / Y / Z axis Travel

1100 x 710 x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

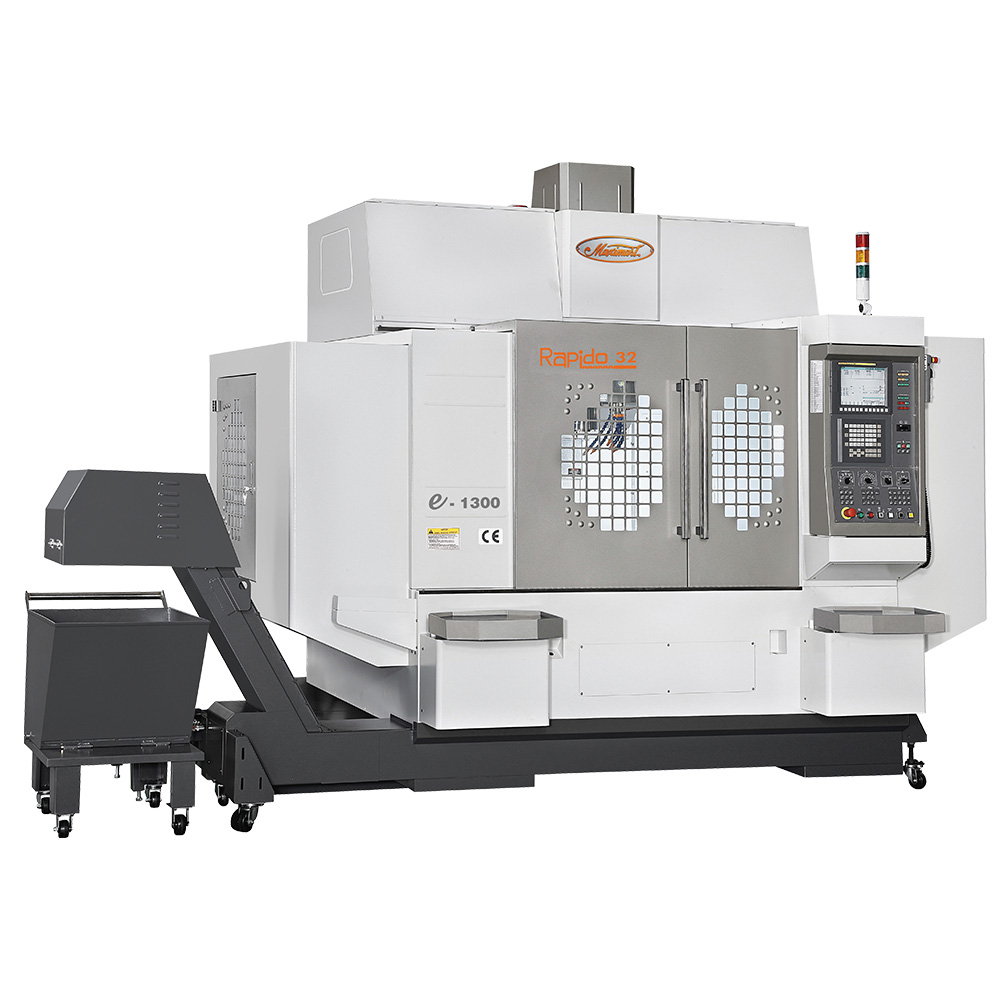

-1300

Table Size

1400 x 610 mm

X / Y / Z axis Travel

1300 x 610 (opt.710) x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

-1300 y+

Table Size

1400 x 610 mm

X / Y / Z axis Travel

1300 x 610 (opt.710) x 610 (opt.830) mm

Spindle Taper

BBT#40 / DIN#40 / CAT#40

Spindle Speed

10,000 rpm

FULL SPECIFICATION

Profile

Features

Controller

sPECIFICATION

Inquiry

Catalog

FEATURES

Spindles
  • ■
    10,000 - rpm Spindle Direct-Drive
  • ■
    Spindle Diameter : 60 mm on model: e-600/750
  • ■
    Spindle Diameter : 70 mm on model: e-750A/850/1000/1100/1300
Spindles Coolant
  • ■
    Spindle Coolant System (4000 BTU) on model: e-600/750/850/1000/1100/1300
  • ■
    Spindle Air Blast before Tool-exchange
  • ■
    Spindle Nose Coolant Jet Flushing
  • ■
    Spindle Side Air Blow Nozzle & Coolant Nozzle
  • ■
    Spindle All-time Air Curtain
Contorl Units
  • ■
    FANUC
  • ■
    MITSUBISHI
  • ■
    SIEMENS
  • ■
    HEIDENHAIN
Tools Magazine
  • ■
  • ■
    20 pockets Arm-type Automatic Tool Change Mechanism (e-600 ~ e-1300)
  • ■
    24 pockets Arm-type Automatic Tool Change Mechanism (BT#50) (e-1300 G5 / e-1800 G5)
Chip & Coolant System
  • ■
    Chip Conveyor : Screw-drive, Machine Front Side   (e-600 ~ e-1000)
  • ■
    Chip Conveyor​ : Chain-type, Machine Front Side     (e-1100 / 1300 / 1800)
Electrics & Certification
  • ■
    Maximart standard electrics system
Safety Device & Lubrication
  • ■
    Full Enclosure Machine Guard
  • ■
    Machine Auto Power-off Function
  • ■
    Z -axis Auto Ascend when Power Failure (Fanuc / Mitsubishi only)
  • ■
    Machine Window w/ Safety Glasses
  • ■
    3 Colors Signal Light
X / Y / Z Axes Movement
  • ■
    X/Y/Z -axis high Precision Linear Guideway w/ Self-lube Device
  • ■
    Standard Z -axis Brake Motor
  • ■
    X/Y/Z -axis Precision C3 Grade Ball screw
  • ■
    Direct-drive transmission
Product Options
  • ■
    Air Gun & Coolant Gun
  • ■
    Rigid Tapping
  • ■
    Leveling Pads & Bolts
  • ■
    Tools & Toolbox
  • ■
    Operational Manual & Parts List
Spindles
  • ■
    12,000 - rpm Spindle Direct-Drive without Coolant through spindle function
  • ■
    12,000 - rpm Spindle Direct-Drive with Coolant through spindle function
Spindles Coolant
  • ■
      8 bar - ​​Coolant Supply through Spindle ​with Filtering System
  • ■
    20 bar - ​Coolant Supply through Spindle with Filtering System
  • ■
    20 bar - ​Coolant Supply through Spindle with ​Centrifugal Separator
  • ■
    50 bar - ​Coolant Supply through Spindle with ​Paper Band Filter
  • ■
    70 bar - ​Coolant Supply through Spindle with ​Paper Band Filter
  • ■
    ** Spindle Motor w/ Coolant through Spindle (CTS) Function must be selected**
Contorl Units
  • ■
    FANUC / MITSUBISHI / SIEMENS / HEIDENHAIN  Controller Upgrade
  • ■
  • 24 Months warranty on control unit
Tools Magazine
  • ■
  • ■
    Arm-type 30 pcs tool magazine upgrade (e-600/750(A)/850/1000/1300)
  • ■
    Arm-type 48 pcs tool magazine upgrade (e-600/750(A)/850/1000/1300)
  • ■
    Arm-type 60 pcs tool magazine upgrade (e-600/750(A)/850/1000/1300)
  • ■
    DIN40 (DIN 69871/69872) instead of BT40 Spindle Taper
  • ■
    HSK-A63 instead of BT40 Spindle Taper
Chip & Coolant System
  • ■
    Chip Conveyor : ​Scraper type, left-side with Chip Cart
  • ■
    Chip Conveyor​ : ​Chain type, left-side with Chip Cart
  • ■
    Chip Cart
  • ■
    Extra Pump for Water Spray Gun
  • ■
    Coolant / Oil Skimmer
Electrics & Certification
  • ■
    CE/EMC Marking (including EN ISO13849-1)
  • ■
    Transformer to suit local Power Supply
Safety Device & Lubrication
  • ■
    Main Door (front-side) Interlock + Feed Hold Device
  • ■
    Electrical Cabinet with Main Breaker
X / Y / Z Axes Movement
  • ■
    X/Y/Z -axis under Heidenhain Absolute 0.1μm Linear Scales
  • ■
    Extended Y -axis travel to 710mm on model: e-1100/1300
  • ■
    Extended Z -axis travel 220mm on model: e-850/1000/1100/1300
  • ■
    Extended Z -axis travel 300mm on model: e-1800
  • ■
    200mm Riser Block on Column on model: e-600/750(A)
4th Axis preparation
  • ■
    Wiring + Plug Preparation for 4th -axis w/o Driver and Motor
  • ■
    4th -axis Driver + Motor + PLC Package
  • ■
    CNC Rotary Table
Automation & Probing
  • ■
    Renishaw - TS-27R - Tool Setting Probe system + Software
  • ■
    Renishaw - ​OMP400 - ​Workepiece Measurement + Software
  • ■
    Renishaw - ​RMP40 - ​Workpiece Measurement + Software
  • ■
    Blum - ​Z-Nano - Tool Setting Probe system + Software
  • ■
    Blum - ​ZX-Speed - ​Tool Setting Probe system + Software

Control unitS

FANUC 0i-MF PLUS

  • Enhanced Safety
  • Highly Customizable
  • Improved Processing Power
  • Shop Floor Programming
  • High Performance
  • Additional Functions Available

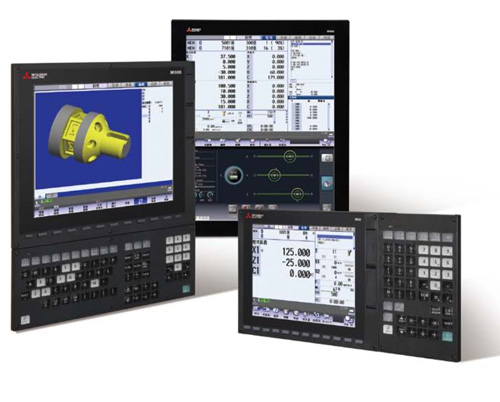

MITSUBISHI M80

  • Panel-in type, a control unit with integrated display
  • Provided in package (TypeA/TypeB) for easier selection
  • Windows-less display provides easy operability
  • High-speed, high-accuracy, high-quality cutting through SSS-4G control
  • High productivity and high quality are our primary focus
  • M80 Series brings out the full potential of machine tools
  • M80 Series includes SSS control and inclined surface machining features.
  • Improved milling features using a tool spindle
  • Multi-axis multi-part system control features
  • Real-time tuning helps maintain machine stability
  • Significantly easier programming

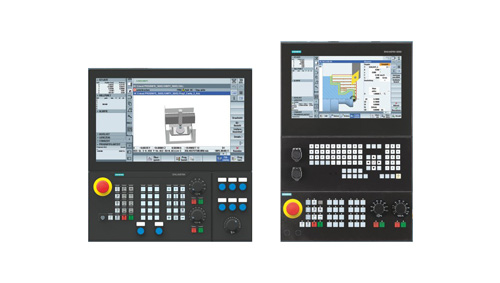

SIEMENS 828D

  • Capacitive 15.6" color display in the 16:9 format
  • Preconfigured sidescreen
  • Intuitive multi-touch operation
  • Full QWERTY keyboard
  • Softkey selection using touch function
  • Simple data transfer using front interfaces with degree of protection IP65
  • Proximity/distance sensor for smart display control
  • Die-cast magnesium panel front with scratch-resistant glass
  • Operators can wear work gloves
  • Rugged and maintenance free

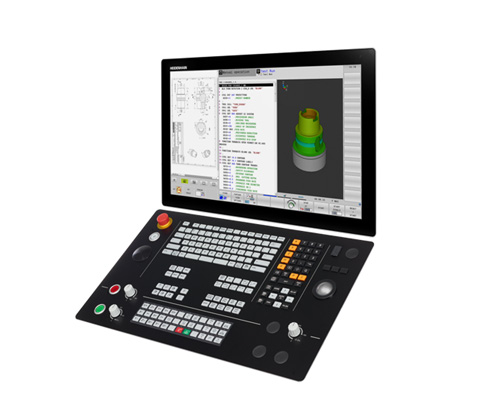

HEIDENHAIN TNC 640

  • 24 control loops (22 with functional safety), including up to 4 spindles
  • Version with multi-touch screen
  • Milling, turning, and grinding operations
  • User-friendly programming in HEIDENHAIN Klartext or with G codes
  • Extensive machining and touch-probe cycle packages
  • Fast block processing time (0.5 ms)
  • High-end performance for perfect surfaces and exceptional accuracy
  • Dynamic collision monitoring for greater safety and reliability

Technical Table

View the Technical Table
