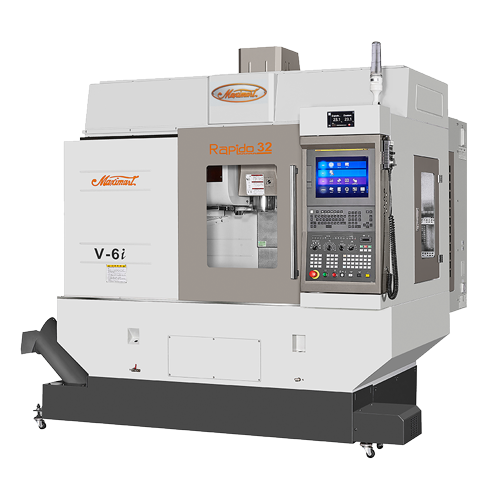

V-6

V-8

V-11

V-13

     Home  /  Machines  / VMC / Rapido / V-11

V-11 D

Table Size

1250 x 610 mm

X / Y / Z axis Travel

1100 x 610 x 610 mm

Spindle Taper

BT#40 / DIN#40 / CAT#40 / HSK-63A(Opt.)

Spindle Speed

60 - 12,000 rpm

V-11H

Table Size

1250 x 610 mm

X / Y / Z axis Travel

1100 x 610 x 610 mm

Spindle Taper

BT#40 / DIN#40 / CAT#40 / HSK-63A(Opt.)

Spindle Speed

60 - 15,000 rpm

V-11i

Table Size

1250 x 610 mm

X / Y / Z axis Travel

1100 x 610 x 610 mm

Spindle Taper

BT#40 / HSK-63A

Spindle Speed

20,000 rpm

Profile

Features

Controller

sPECIFICATION

Inquiry

Catalog

FEATURES

Spindles
  • ■
    60-12,000 rpm Spindle speed: V-D
  • ■
    60-15,000 rpm Spindle speed: V-H
  • ■
    Spindle Diameter : 60 mm on model: V-6
  • ■
    Spindle Diameter : 70 mm on model: V-8 / V-11 / V13
  • ■
    Transmission: Direct drive for V-D / V-H
  • ■
    Transmission: Built-in for V-i
Spindles Coolant
  • ■
    Spindle Coolant System
  • ■
    Spindle Air Blast before Tool-exchange
  • ■
    Spindle Nose Coolant Jet Flushing
  • ■
    Spindle Side Air Blow Nozzle & Coolant Nozzle
  • ■
    Spindle All-time Air Curtain
Contorl Units
  • ■
    FANUC
  • ■
    MITSUBISHI
  • ■
    SIEMENS
  • ■
    HEIDENHAIN
Tools Magazine
  • ■
  • ■
    Armless 20-tool ATC (inverter drive)
  • ■
    Arm-type 20-tool ATC (V-6D / V-6H / V-6i)
Chip & Coolant System
  • ■
    Chip Conveyor : Screw-drive, 2 sides + front side
Electrics & Certification
  • ■
    Maximart standard electrics system
Safety Device & Lubrication
  • ■
    Full Enclosure Machine Guard
  • ■
    Machine Auto Power-off Function
  • ■
    Z -axis Auto Ascend when Power Failure (Fanuc only)
  • ■
    Machine Window w/ Safety Glasses
  • ■
    3 Colors Signal Light
X / Y / Z Axes Movement
  • ■
    X/Y/Z -axis high Precision Linear Guideway w/ Self-lube Device
  • ■
    Standard Z -axis Brake Motor
  • ■
    X/Y/Z -axis Precision C3 Grade Ball screw
  • ■
    Direct-drive transmission
Product Options
  • ■
    Air Gun & Coolant Gun
  • ■
    Rigid Tapping
  • ■
    Leveling Pads & Bolts
  • ■
    Tools & Toolbox
  • ■
    Operational Manual & Parts List
Spindles
  • ■
    24,000 rpm Spindle speed for V-i with HSK-E50
  • ■
    30,000 rpm Spindle speed for V-i with HSK-63A
Spindles Coolant
  • ■
      8 bar - ​​Coolant Supply thru Spindle ​w/ Filtering System
  • ■
    22 bar - ​Coolant Supply thru Spindle w/ Filtering System
Contorl Units
  • ■
    FANUC / MITSUBISHI / SIEMENS / HEIDENHAIN  Controller Upgrade
  • ■
  • 24 Months warranty on control unit
Tools Magazine
  • ■
  • ■
  • Arm-type 30-tool ATC with 1.5 sec. quick tool change
Chip & Coolant System
  • ■
  • Front side chain-type chip conveyor (single side)
  • ■
    Chip Cart
  • ■
    Extra Pump for Water Spray Gun
  • ■
    Coolant / Oil Skimmer
Electrics & Certification
  • ■
    CE/EMC Marking (including EN ISO13849-1)
  • ■
    Transformer to suit local Power Supply
Safety Device & Lubrication
  • ■
    Main Door (front-side) Interlock + Feed Hold Device
  • ■
    Electrical Cabinet with Main Breaker
X / Y / Z Axes Movement
  • ■
    X/Y/Z -axis under Heidenhain Absolute 0.1μm Linear Scales
  • ■
    Extended Y -axis travel to 710mm on model
  • ■
    Extended Z -axis travel 220mm on model
  • ■
    Extended Z -axis travel 300mm on model
  • ■
    200mm Riser Block on Column on model
4th Axis preparation
  • ■
    Wiring + Plug Preparation for 4th -axis w/o Driver and Motor
  • ■
    4th -axis Driver + Motor + PLC Package
Automation & Probing
  • ■
    Renishaw - TS-27R - Tool Setting Probe system + Software
  • ■
    Renishaw - ​OMP400 - ​Workepiece Measurement + Software
  • ■
    Renishaw - ​RMP40 - ​Workpiece Measurement + Software
  • ■
    Blum - ​Z-Nano - Tool Setting Probe system + Software
  • ■
    Blum - ​ZX-Speed - ​Tool Setting Probe system + Software

Control unitS

FANUC 0i-MF PLUS

  • Enhanced Safety
  • Highly Customizable
  • Improved Processing Power
  • Shop Floor Programming
  • High Performance
  • Additional Functions Available

MITSUBISHI M80

  • Panel-in type, a control unit with integrated display
  • Provided in package (TypeA/TypeB) for easier selection
  • Windows-less display provides easy operability
  • High-speed, high-accuracy, high-quality cutting through SSS-4G control
  • High productivity and high quality are our primary focus
  • M80 Series brings out the full potential of machine tools
  • M80 Series includes SSS control and inclined surface machining features.
  • Improved milling features using a tool spindle
  • Multi-axis multi-part system control features
  • Real-time tuning helps maintain machine stability
  • Significantly easier programming

SIEMENS 828D

  • Capacitive 15.6" color display in the 16:9 format
  • Preconfigured sidescreen
  • Intuitive multi-touch operation
  • Full QWERTY keyboard
  • Softkey selection using touch function
  • Simple data transfer using front interfaces with degree of protection IP65
  • Proximity/distance sensor for smart display control
  • Die-cast magnesium panel front with scratch-resistant glass
  • Operators can wear work gloves
  • Rugged and maintenance free

HEIDENHAIN TNC 640

  • 24 control loops (22 with functional safety), including up to 4 spindles
  • Version with multi-touch screen
  • Milling, turning, and grinding operations
  • User-friendly programming in HEIDENHAIN Klartext or with G codes
  • Extensive machining and touch-probe cycle packages
  • Fast block processing time (0.5 ms)
  • High-end performance for perfect surfaces and exceptional accuracy
  • Dynamic collision monitoring for greater safety and reliability

Technical Table

Explore the Specification of MAXIMART VMC
