315 mm / 12.4"
1000 mm / 40"
1500 mm / 59"
2000 mm / 79"
3000 mm / 118"
Ø 85 mm / Ø 3" (standard)
Ø 105 mm / Ø 4" (optional)
Ø 155 mm / Ø 6" (optional)
630 mm / 24.8"
25 - 1545 rpm / 18 Steps
H: 2250 - 491 rpm
M: 490 - 126 rpm
L: 125 - 27 rpm
Standard electrical component
CE Certificated machine
Canada CSA standard conformity machine
with D1-8 Spindle Nose
with A1-11 Spindle Nose
with A2-11 Spindle Nose
Thr. Hole 89 mm.
Thr. Hole 105 mm.
Thr. Hole 160 mm.
For D1-8 Spindle Nose
For D1-8 Spindle Nose
For A2-11 Spindle Nose
For D1-8 Spindle Nose
For D1-8 / A2-11 Spindle Nose
CE Standard full length rear splash guard
CE Standard Chuck Guard
CE Standard Leadscrew Guard
Chip & Coolant Shield
Standard for all series
Standard for "i" series
2-axis DRO system (Fagor)
2-axis DRO system (Taiwan)
To support the long workpiece and prevent buckling (fixed)
To support the long workpiece and prevent buckling (moveable)
Increase confidence for workpiece requires correct shoulder length
5 Adjustable reference screw for conveniently setting stop position
Main drive motor
Upgrade to bigger HP motor
Reliable, Longer use life, Responsive and Stable
Faster travel speed for Z-axis
Ruggedly constructed for ultra-high stability when heavy cutting
Prevent simultaneously power feeding & Thread cutting
Standard Coolant equipment
Segment of bed, can be removed for increasing swing capacity
Slideways of carriage & saddle are hardened and best wear resistance
Easier & faster fixing cutting tool
Hardened, Precisely-ground and graduated in inch & metric scales
Especially ideal for holding long workpiece
At the back side of the bed, suitable for taper-cutting
Standard Dead Center
Halogen Work Light
18 steps
Rotary Dial Lever
Inverter drive variable speed output
3 Range selection (H/M/L)
Automatic speed change by inverter control
Rotary dial chart reference
Spindle speed displayed
on rpm meter
Foot brake with brake pedal
Electromagnetic brake for spindle motor
-
CSS-like Function (Constant Surface
Speed)
Constant spindle speed combines with the use of
cross slide lever for feeding, providing cutting accuracy and speed for side
facing on a round plate
-
Step Turning Perform
By using automatic speed change, combined with
automatic cross feed function will increase efficiency greatly.
Standarad Accessories

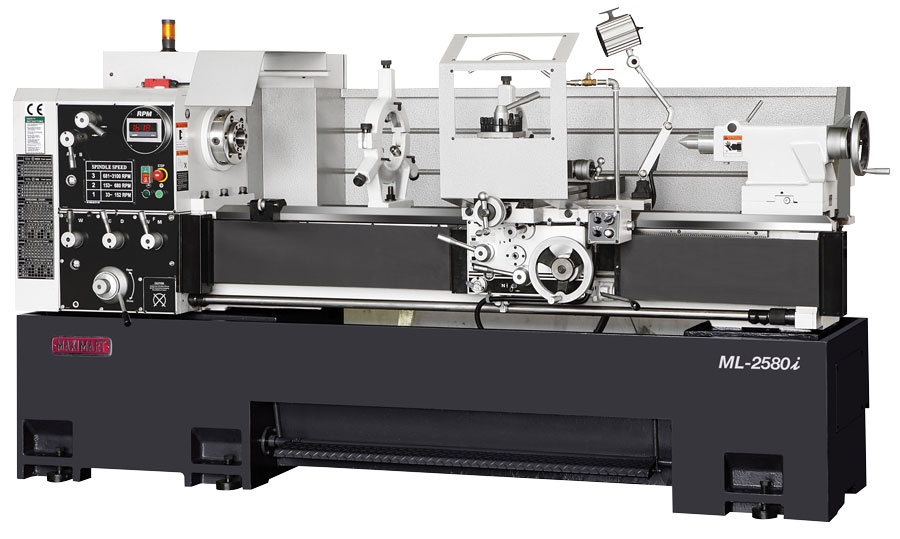

Available options on Maximart Precision Lathe
*Spindle speed difference is subject to model selection
